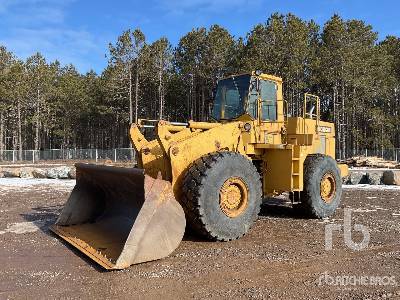

Clark Michigan 35B Wheel Loader

Clark Michigan 35B Wheel Loader Specs front
Clark Michigan 35B Wheel Loader Specs front
Clark Michigan 35B Wheel Loader Specs side
Clark Michigan 35B Wheel Loader Specs side
Clark Michigan 35B Wheel Loader Specs back
Clark Michigan 35B Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

8.73 ft in

Dimensions

A

Length with Bucket on Ground

18.02 ft in

B

Width Over Tires

6.67 ft in

C

Height to Top of Cab

9.5 ft in

D

Wheelbase

7.71 ft in

E

Ground Clearance

1.17 ft in

F

Hinge Pin - Max Height

11.13 ft in

H

Reach at Max Lift and Dump

3.29 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2353

Engine Model

D500PL

Net Power

74 hp

Gross Power

84 hp

Power Measured @

2200 rpm

Displacement

303.8 cu in

Torque Measured @

1600 rpm

Max Torque

194.8

Operational

Operating Weight

14418.3 lb

Fuel Capacity

25.1 gal

Hydraulic System Fluid Capacity

21.7 gal

Engine Oil Fluid Capacity

3.5 gal

Cooling System Fluid Capacity

7.2 gal

Transmission Fluid Capacity

4.5 gal

Front Axle/Diff Fluid Capacity

3.7 gal

Rear Axle/Diff Fluid Capacity

3.7 gal

Static Tipping Weight

9479.9 lb

Turning Radius

16.8 ft in

Operating Voltage

24 V

Alternator Supplied Amperage

25 amps

Rear Axle Oscillation

24 degrees

Tire Size

12.00-24 8PR (L-2)

Transmission

Transmission Type

countershaft powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

21.2 mph

Max Speed - Reverse

21.5 mph

Hydraulic System

Pump Type

gear type

Relief Valve Setting

2275

Pump Flow Capacity

32.3 gal/min

Raise Time

6 sec

Dump Time

1.1 sec

Lower Time

3.4 sec

Bucket

Breakout Force

10656 lb

Dump Clearance at Max Raise

8.8 ft in

Bucket Width

7 ft in

Bucket Capacity - heaped

1.4 yd3

Bucket Capacity - struck

1.2 yd3

Dimensions

Length with Bucket on Ground

18.1 ft in

Width Over Tires

6.7 ft in

Height to Top of Cab

9.5 ft in

Ground Clearance

1.2 ft in

Wheelbase

7.8 ft in

Hinge Pin - Max Height

11.2 ft in

Reach at Max Lift and Dump

3.3 ft in
