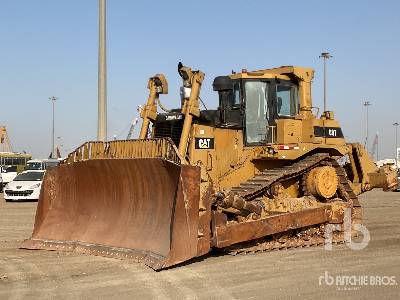

Caterpillar D9T Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Units

Dimensions

Dimensions

A

Length w/ Blade

21.76ft in

B

Width Over Tracks

9.4ft in

C

Height to Top of Cab

12.5ft in

D

Length of Track on Ground

11.4ft in

E

Ground Clearance

1.96ft in

F

Length w/o Blade

16.11ft in

Undercarriage

G

Track Gauge

7.39ft in

H

Standard Shoe Size

24in


Specifications

Engine

Engine Make

2236

Engine Model

C18 ACERT

Gross Power

464hp

Net Power

410hp

Power Measured @

1800rpm

Displacement

1106cu in

Operational

Operating Weight

105600lb

Fuel Capacity

235gal

Cooling System Fluid Capacity

27.5gal

Engine Oil Capacity

10gal

Hydraulic Fluid Capacity

23.5gal

Powertrain Fluid Capacity

43.4gal

Final Drives Fluid Capacity

3.9gal

Operating Voltage

24V

Alternator Supplied Amperage

95amps

Transmission

Transmission Type

Power Shift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

7.3mph

Max Speed - Reverse

8.9mph

Undercarriage

Ground Pressure

16.1psi

Ground Contact Area

6569in2

Standard Shoe Size

24in

Number of Shoes per Side

43

Number of Track Rollers per Side

8

Track Pitch

9.5in

Track Gauge

7.4ft in

Hydraulic System

Pump type

Piston

Relief Valve Pressure

5875psi

Pump Flow Capacity

101gal/min

Standard Blade

Width

14.3ft in

Height

6.5in

Capacity

17.7yd3

Cutting Depth

23.9in

Dimensions

Length w/o Blade

16.1ft in

Length w/ Blade

21.8ft in

Width Over Tracks

9.4ft in

Height to Top of Cab

12.5ft in

Length of Track on Ground

11.4ft in

Ground Clearance

2ft in
