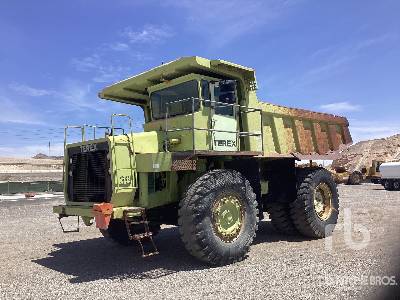

Terex TR70 Rock Truck

Units

Dimensions

Dimensions

A

Overall Length

32.49 ft in

B

Overall Width

17.39 ft in

C

Overall Height

15.1 ft in

D

Wheelbase

14.77 ft in

E

Ground Clearance

2.3 ft in

F

Dump Height

27.56 ft in

G

Dump Ground Clearance

1.65 ft in

Dump

H

Dump Angle

59 degrees


Specifications

Engine

Number of Cylinders

12

Engine Make

2350

Engine Model

MTU 12V-2000TA DDEC

Gross Power

760 hp

Net Power

700 hp

Power Measured @

2100 rpm

Displacement

1464 cu in

Max Torque

2400 lb ft

Torque Measured @

1200 rpm

Aspiration

turbocharged

Operational

Fuel Capacity

247.8 gal

Cooling System Fluid Capacity

62.4 gal

Engine Oil Capacity

24.9 gal

Diff and Final Drive Fluid Capacity

13.8 gal

Steering System Fluid Capacity

24.4 gal

Hydraulic System Fluid Capacity

114.2 gal

Operating Voltage

24 V

Alternator Supplied Amperage

70 amps

Tire Size

24.00R35 Radial

Transmission

Transmission Type

Allison M6610AR

Number of Gears - Forward

6

Number of Gears - Reverse

2

Max Speed

35.5 mph

Weights

Empty Weight

105140 lb

Loaded Weight

248440 lb

Weight Distribution Front - empty

48 %

Weight Distribution Rear - empty

52 %

Weight Distribution Front - loaded

34 %

Weight Distribution Rear - loaded

66 %

Dump

Rated Payload

144000 lb

Load Capacity - Struck

38 yd3

Load Capacity - heaped

54.3 yd3

Dump Angle

59 degrees

Raise Time

13 sec

Lower Time

11.5 sec

Dimensions

Overall Length

32.5 ft in

Overall Width

17.4 ft in

Overall Height

15.1 ft in

Wheelbase

14.8 ft in

Ground Clearance

2.3 ft in

Dump Height

27.6 ft in

Dump Ground Clearance

1.7 ft in
