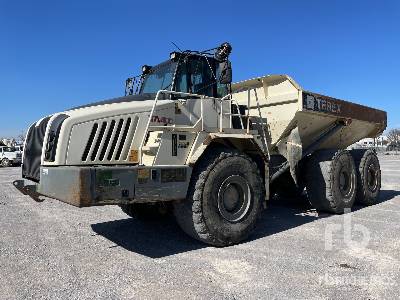

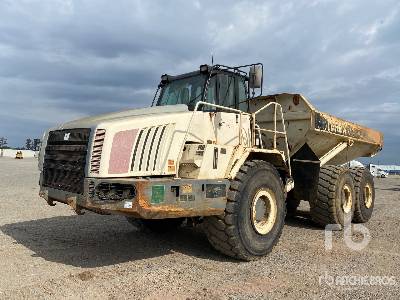

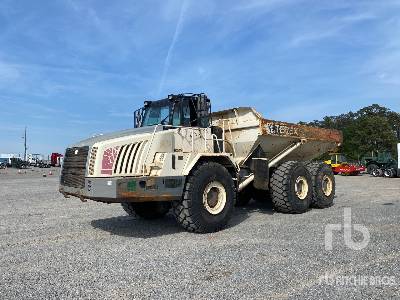

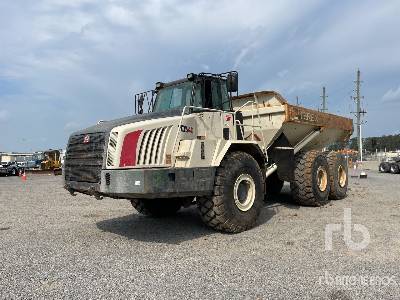

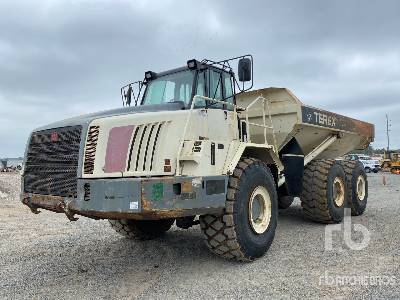

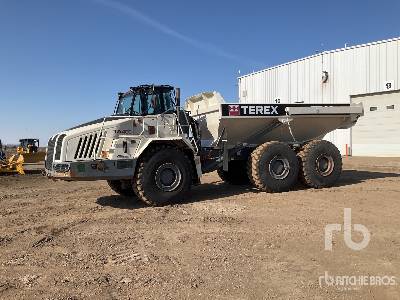

Terex TA40 Articulated Dump Truck

Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Units

Dimensions

Dimensions

A

Overall Length

35.77ft in

B

Overall Width

11.16ft in

C

Overall Height

12.8ft in

D

Wheelbase

17.39ft in

E

Ground Clearance

2.96ft in

F

Dump Height

22.64ft in

G

Dump Ground Clearance

2.96ft in

Dump

H

Dump Angle

66degrees


Specifications

Engine

Number of Cylinders

6

Engine Make

2350

Engine Model

Series 60

Gross Power

450hp

Net Power

437hp

Power Measured @

2000rpm

Displacement

855cu in

Max Torque

1548lb ft

Torque Measured @

1350rpm

Aspiration

turbocharged

Operational

Fuel Capacity

118.9gal

Hydraulic System Fluid Capacity

87.2gal

Cooling System Fluid Capacity

17.7gal

Engine Oil Capacity

8.5gal

Transmission Fluid Capacity

16.2gal

Operating Voltage

24V

Alternator Supplied Amperage

100amps

Tire Size

29.5R25

Transmission

Transmission Type

Allison 4500 ORS fully automatic transmission with planetary gearing

Number of Forward Gears

6

Number of Reverse Gears

1

Max Speed

37.3mph

Weights

Front Axle - empty

34936lb

Center Axle - empty

16500%

Rear Axle - empty

16368lb

Front Axle - loaded

40304%

Center Axle - loaded

55000%

Rear Axle - loaded

55000lb

Total Empty

67804lb

Total Loaded

151579lb

Dump

Rated Payload

83775lb

Capacity - Struck

22.8yd3

Capacity - Heaped

30.5yd3

Dump Angle

66degrees

Raise Time

12.5sec

Lower Time

8sec

Dimensions

Overall Length

35.8ft in

Overall Width

11.2ft in

Overall Height

12.8ft in

Wheelbase

17.4ft in

Ground Clearance

3ft in

Dump Height

22.7ft in

Dump Ground Clearance

3ft in
