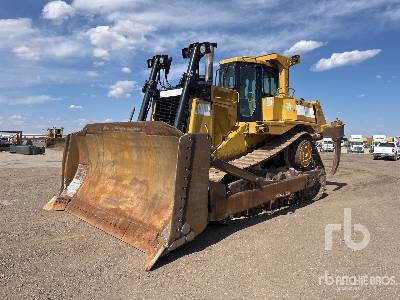

Caterpillar D9R Crawler Tractor

Caterpillar D9R Crawler Tractor Specs front
Caterpillar D9R Crawler Tractor Specs front
Caterpillar D9R Crawler Tractor Specs side
Caterpillar D9R Crawler Tractor Specs side
Caterpillar D9R Crawler Tractor Specs back
Caterpillar D9R Crawler Tractor Specs back
Units

Dimensions

Dimensions

A

Length w/ Blade

23.56 ft in

B

Width Over Tracks

9.62 ft in

C

Height to Top of Cab

12.54 ft in

D

Length of Track on Ground

11.39 ft in

E

Ground Clearance

1.94 ft in

F

Length w/o Blade

17 ft in

Undercarriage

G

Track Gauge

7.39 ft in

H

Standard Shoe Size

24.02 in


Specifications

Engine

Number of Cylinders

8

Engine Make

2236

Engine Model

3408ETA

Gross Power

410 hp

Power Measured @

1900 rpm

Displacement

1098.5 cu in

Operational

Operating Weight

109276.6 lb

Fuel Capacity

216 gal

Engine Oil Capacity

12 gal

Hydraulic Fluid Capacity

19 gal

Powertrain Fluid Capacity

44 gal

Final Drives Fluid Capacity

5 gal

Operating Voltage

24 V

Transmission

Transmission Type

Powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

7.4 mph

Max Speed - Reverse

9.1 mph

Undercarriage

Ground Pressure

16.1 psi

Ground Contact Area

6569 in2

Standard Shoe Size

24.1 in

Number of Track Rollers per Side

8

Track Gauge

7.4 ft in

Standard Blade

Width

15.3 ft in

Height

76.2 in

Capacity

21.4 yd3

Cutting Depth

23.9 in

Dimensions

Length w/o Blade

17 ft in

Length w/ Blade

23.6 ft in

Width Over Tracks

9.7 ft in

Height to Top of Cab

12.6 ft in

Length of Track on Ground

11.4 ft in

Ground Clearance

2 ft in
