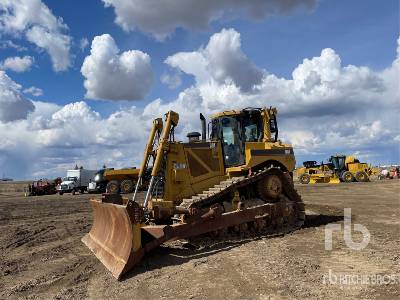

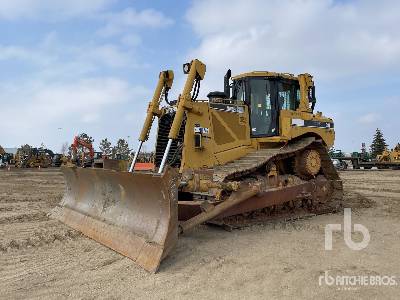

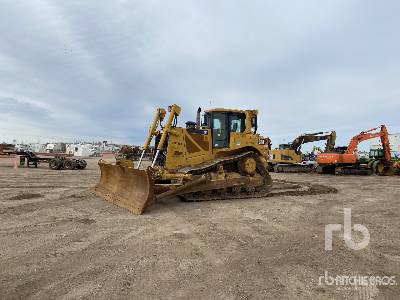

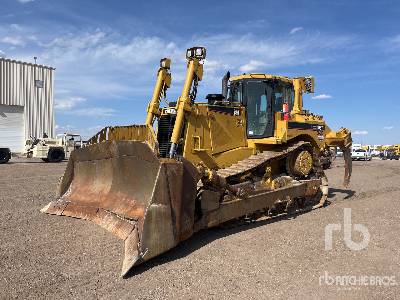

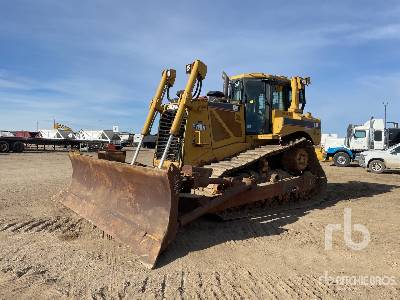

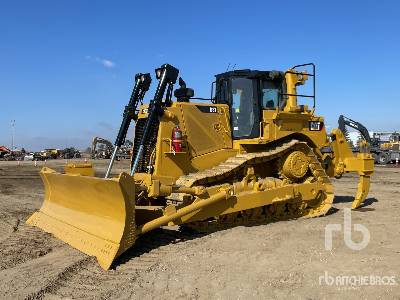

Caterpillar D8T Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Units

Dimensions

Blades - 8A

E

Ground Clearance

52.1in

Dimensions

A

Length w/ Blade

19.99ft in

B

Width Over Tracks

8.84ft in

C

Height to Top of Cab

11.77ft in

D

Length of Track on Ground

10.52ft in

E

Ground Clearance

2.01ft in

F

Length w/o Blade

15.2ft in

Dimensions - LGP

E

Ground Clearance

2401in

Dimensions - Non-Suspended

E

Ground Clearance

23.8in

Undercarriage

G

Track Gauge

6.84ft in

H

Standard Shoe Size

24.02in

Undercarriage - LGP

E

Ground Clearance

24.1in

G

Track Gauge

92in


Specifications

Engine

Engine Make

2236

Engine Model

C15 ACERT

Gross Power

347hp

Net Power

310hp

Displacement

928cu in

Operational

Operating Weight

87733lb

Fuel Capacity

170gal

Cooling System Fluid Capacity

20.3gal

Engine Oil Capacity

10gal

Hydraulic Fluid Capacity

19.8gal

Powertrain Fluid Capacity

41gal

Final Drives Fluid Capacity

3.3gal

Operating Voltage

24V

Alternator Supplied Amperage

100amps

Transmission

Transmission Type

Hydrostatic

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

6.6mph

Max Speed - Reverse

8.8mph

Undercarriage

Ground Contact Area

5554in2

Standard Shoe Size

24.1in

Number of Shoes per Side

44

Number of Track Rollers per Side

8

Number of Carrier Rollers per Side

1

Track Pitch

8.5in

Track Gauge

6.9ft in

Weights

Operating Weight

86900lb

Note (1)

Operating Weight Standard: Includes hydraulic controls, blade, tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, SU-Blade, Single-Shank Ripper, 610 mm (24 in) MS shoes, and operator.

Note (2)

Operating Weight LGP: Includes hydraulic controls, blade, tilt cylinder, drawbar, coolant, lubricants, 100% fuel, ROPS, FOPS cab, SU-Blade, 965 mm (38 in) MS shoes, and operator.

Operating Weight - LGP

82496lb

Shipping Weight - LGP

68700lb

Shipping Weight - Standard SU Blade

66300lb

Note (3)

Shipping Weight Standard: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, and 610 mm (24 in) MS shoes.

Note (4)

Shipping Weight LGP: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, and 965 mm (38 in) MS shoes.

Operating Weight - Standard

87600lb

Hydraulic System

Pump type

piston-type, variable displacement

Relief Valve Pressure

5700psi

Pump Flow Capacity

73gal/min

Standard Blade

Width

12.9ft in

Height

65in

Capacity

11.4yd3

Cutting Depth

22.6in

Dimensions

Length w/o Blade

15.2ft in

Length w/ Blade

20ft in

Width Over Tracks

8.9ft in

Height to Top of Cab

11.8ft in

Length of Track on Ground

10.6ft in

Ground Clearance

2.1ft in

Blades

8SU - Capacity - SAE J1265

13.4yd3

8SU - Width - Over End Bits

13.3ft in

8U - Capacity - SAE J1265

15.4yd3

8U - Width - Over End Bits

14ft in

8A - Capacity - SAE J1265

6.8yd3

8A - Width - Over End Bits

16.5ft in

8SU LGP - Capacity - SAE J1265

12.9yd3

8SU LGP - Width - Over End Bits

14.9ft in

Dimensions - LGP

Length - Track on Ground

126.2in

Ground Clearance

2401in

Width - Tractor - Without Trunnions - Standard Shoes

130in

Machine Height - ROPS/FOPS Cab

140.4in

Overall Length - Basic Tractor

183in

Ground Pressure (ISO 16754)

7.7 psi

Dimensions - Non-Suspended

Width - Tractor - Without Trunnions - Standard Shoes

106in

Machine Height - ROPS/FOPS Cab

140.7in

Length - Track on Ground

128.3in

Overall Length - Basic Tractor

183in

Ground Clearance

23.8in

Ground Pressure (ISO 16754)

13 psi

Blades - 8A

Height

3.9ft in

Digging Depth

24.6in

Ground Clearance

52.1in

Maximum Tilt

28.9in

Weight* - Without Hydraulic Controls

11900lb

Total Operating Weight** - With Blade and Single-Shank Ripper

88700lb

Note (1)

*Includes blade tilt cylinder.

Note (2)

**Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, blade, single-shank ripper, 610 mm (24 in) MS shoes, and operator.

Capacity - SAE J1265

6.8yd3

Width - Over End Bits

16.6ft in

Undercarriage - LGP

Shoe Type

Moderate Service

Width - Shoe

38in

Shoes/Side

44

Track Rollers - Each Side

8

Grouser Height

3.1in

Pitch

8.5in

Ground Clearance

24.1in

Track Gauge

92in

Length - Track on Ground

126in

Ground Contact Area

9593in2

Ground Pressure (ISO 16754)

7.7 psi

Weights - Waste Handler

Operating Weight - Standard

87400lb

Operating Weight - LGP

92300lb

Shipping Weight - Standard

73400lb

Shipping Weight - LGP

77900lb

Note (1)

Operating Weight Standard: Includes hydraulic controls, blade, tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, Waste SU-Blade, striker box, 610 mm (24 in) MS shoes, and operator.

Note (2)

Operating Weight LGP: Includes hydraulic controls, blade, tilt cylinder, drawbar, coolant, lubricants, 100% fuel, ROPS, FOPS cab, Waste SU-Blade, 965 mm (38 in) MS shoes, striker box, and operator.

Note (3)

Shipping Weight Standard: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, striker box, and 610 mm (24 in) MS shoes.

Note (4)

Shipping Weight LGP: Includes coolant, lubricants, 20% fuel, ROPS, FOPS cab, striker box, and 965 mm (38 in) MS shoes.
