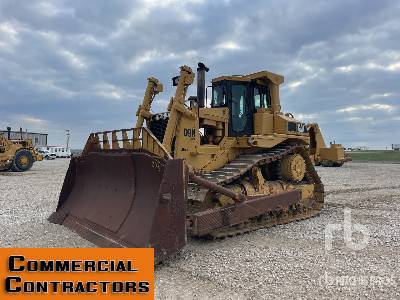

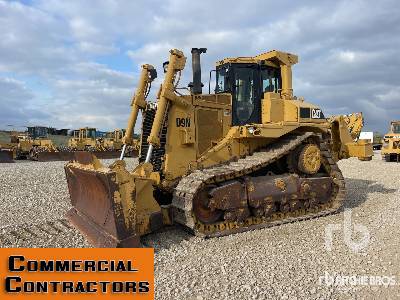

Caterpillar D9N WDA Crawler Tractor

Caterpillar D9N WDA Crawler Tractor Specs front
Caterpillar D9N WDA Crawler Tractor Specs front
Caterpillar D9N WDA Crawler Tractor Specs side
Caterpillar D9N WDA Crawler Tractor Specs side
Caterpillar D9N WDA Crawler Tractor Specs back
Caterpillar D9N WDA Crawler Tractor Specs back
Units

Dimensions

Dimensions

A

Length w/ Blade

22.54 ft in

C

Height to Top of Cab

12.83 ft in

D

Length of Track on Ground

11.39 ft in

E

Ground Clearance

1.66 ft in

F

Length w/o Blade

16.97 ft in

Undercarriage

G

Track Gauge

7.39 ft in

H

Standard Shoe Size

24.02 in


Specifications

Engine

Engine Make

2236

Engine Model

3408

Gross Power

370.2 hp

Displacement

1098.5 cu in

Operational

Operating Weight

103209.5 lb

Fuel Capacity

209.3 gal

Transmission

Transmission Type

powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Undercarriage

Ground Contact Area

6572.1 in2

Standard Shoe Size

24.1 in

Number of Track Rollers per Side

8

Track Gauge

7.4 ft in

Standard Blade

Width

14.2 ft in

Capacity

34.4 yd3

Cutting Depth

24.1 in

Dimensions

Length w/o Blade

17 ft in

Length w/ Blade

22.6 ft in

Height to Top of Cab

12.9 ft in

Length of Track on Ground

11.4 ft in

Ground Clearance

1.7 ft in
