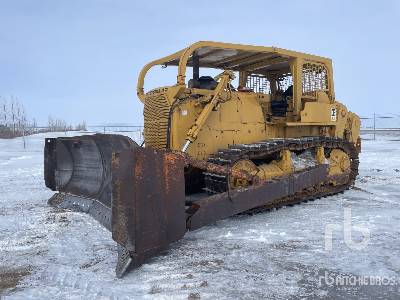

Caterpillar D8K Crawler Tractor

Caterpillar D8K Crawler Tractor Specs front
Caterpillar D8K Crawler Tractor Specs front
Caterpillar D8K Crawler Tractor Specs side
Caterpillar D8K Crawler Tractor Specs side
Caterpillar D8K Crawler Tractor Specs back
Caterpillar D8K Crawler Tractor Specs back
Units

Dimensions

Dimensions

A

Length w/ Blade

21.59 ft in

B

Width Over Tracks

9.16 ft in

C

Height to Top of Cab

11.16 ft in

D

Length of Track on Ground

10.34 ft in

E

Ground Clearance

1.43 ft in

F

Length w/o Blade

17.26 ft in

Undercarriage

G

Track Gauge

6.99 ft in

H

Standard Shoe Size

22.01 in


Specifications

Engine

Engine Model

D342

Gross Power

300 hp

Displacement

1244.9 cu in

Operational

Operating Weight

70503.9 lb

Fuel Capacity

169.1 gal

Transmission

Transmission Type

powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

6.8 mph

Max Speed - Reverse

8.4 mph

Undercarriage

Ground Pressure

12.8 psi

Ground Contact Area

5456.1 in2

Standard Shoe Size

22.1 in

Number of Track Rollers per Side

5

Track Gauge

7 ft in

Standard Blade

Width

13.3 ft in

Dimensions

Length w/o Blade

17.3 ft in

Length w/ Blade

21.6 ft in

Width Over Tracks

9.2 ft in

Height to Top of Cab

11.2 ft in

Length of Track on Ground

10.4 ft in

Ground Clearance

1.5 ft in
