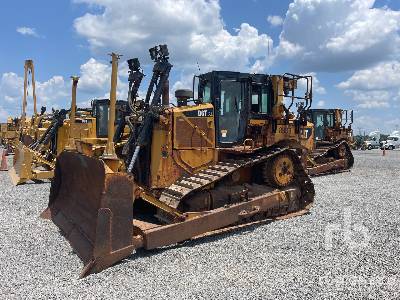

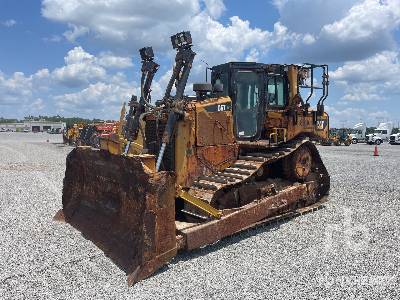

Caterpillar D6T WH (Tier 4 Interim/Stage IIIB) Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
MODEL.UNITS

Dimensions

Blades

Width - Xw Vpat-Blade

13.7ft in

Width - Lgp S-Blade

13.3ft in

Width - Lgp Vpat-Blade

13.7ft in

Capacity - Xl Su-Blade

14.3yd3

Capacity - Xw Su-Blade

14.3yd3

Capacity - Lgp S-Blade

12.3yd3

Capacity - Xw Vpat-Blade

6.7yd3

Capacity - Lgp Vpat-Blade

5.5yd3

Width - Xl Su-Blade

10.7ft in

Width - Xw Su-Blade

11.7ft in

Undercarriage

E

Ground Clearance

1.25ft in

Ground Pressure - Xw Vpat

7.5 psi

Grouser Height

2.6in

Oscillation At Front Idler - Lgp/Lgp Vpat

4.6in

Oscillation At Front Idler - Xl/Xw Vpat

4in

Oscillation At Front Idler - Xw

3.9in

Pitch

8in

Shoe Type

Moderate Service

Shoes/Side - Lgp

45

Shoes/Side - Xl/Xw

41

Track Gauge - Xl

74in

Track Gauge - Xw

80in

Track Gauge - Xw Vpat/Lgp/Lgp Vpat

90in

Track On Ground - Lgp

128in

Track On Ground - Xl/Xw

112in

Track Rollers/Side - Lgp

8

Track Rollers/Side - Xl/Xw

7

Width - Shoe - Lgp

36in

Width - Shoe - Lgp Vpat

31in

Width - Shoe - Xw

30in

Width - Shoe - Xw Vpat

28in

Width - Shoe - Xl

22in

Carrier Rollers/Side

1

Ground Contact Area - Lgp

9223in2

Ground Contact Area - Lgp Vpat

7905in2

Ground Contact Area - Xl

4929in2

Ground Contact Area - Xw

6680in2

Ground Contact Area - Xw Vpat

6246in2

Ground Pressure - Lgp

4.86 psi

Ground Pressure - Lgp Vpat

6.2 psi

Ground Pressure - Xl

8.3 psi

Ground Pressure - Xw

6.4 psi


Specifications

Engine

Displacement

567cu in

Bore

4.5in

Stroke

5.9in

Emissions

U.S. Tier 4 Interim/EU Stage IIIB

Net Power - Iso 9249

205hp

Net Power - Sae J1349

205hp

Net Power - 80/1269/Eec

205hp

Gross Power - Sae J1995

229hp

Engine Model

Cat C9.3 ACERT

Flywheel Power

205hp

Engine Power - Iso 14396

227hp

Net Power - Iso 9249 (Din)

208hp

Engine Power - Iso 14396 (Din)

230hp

Drive Train

Drive Train Type

Mechanical

Operational

Operating Weight

54791lb

Transmission

2.0 Forward

3.2mph

3.0 Forward

5.3mph

2.0 Reverse

4.1mph

3.0 Reverse

5.3mph

1.5 Forward

2.3mph

2.5 Forward

4.1mph

1.5 Reverse

3mph

2.5 Reverse

5.2mph

Drawbar Pull - 2.0 Forward

46410lb

Drawbar Pull - 3.0 Forward

25360lb

3.5 Forward

7.1mph

3.5 Reverse

9mph

Drawbar Pull - 1.5 Forward

79910lb

Drawbar Pull - 2.5 Forward

46410lb

Drawbar Pull - 3.5 Forward

25360lb

Weights

Operating Weight - Xl A

51586lb

Shipping Weight - Xl A

44084lb

Operating Weight - Xl Su

51121lb

Shipping Weight - Xl Su

44084lb

Operating Weight - Xw A

53900lb

Shipping Weight - Xw A

46191lb

Operating Weight - Xw Su

53286lb

Shipping Weight - Xw Su

46191lb

Operating Weight - Xw Vpat

58397lb

Shipping Weight - Xw Vpat

51095lb

Operating Weight - Lgp S

54791lb

Shipping Weight - Lgp S

48365lb

Operating Weight - Lgp Vpat

59457lb

Shipping Weight - Lgp Vpat

52147lb

Shipping Weight - Lgp A

48365lb

Operating Weight - Lgp A

57066lb

Service Refill Capacities

Cooling System

17gal

Fuel Tank

112gal

Final Drive - Each

3.6gal

Hydraulic Tank

17.3gal

Engine Crankcase

6.5gal

Power Train

39.1gal

Pivot Shaft Compartment

1.3gal

Roller Frames - Each

6.6gal

Standards

Brakes

Brakes meet the International Standard ISO 10265:2008.

Rops/Fops

ROPS meets criteria ISO 3471:1994, 2008 FOPS meets ISO 3449:1992, 2005 Level II

Cab

Meets appropriate standards as listed below.

Hydraulic Controls - Main Relief Valve

Pressure Setting - Implement - Non-Vpat

3150 psi

Pressure Setting - Implement - Vpat

3540 psi

Hydraulic Controls - Maximum Operating Pressure

Steering

5800 psi

Bulldozer - Lift - Non-Vpat

2800 psi

Bulldozer - Lift - Vpat

3125 psi

Bulldozer - Tilt - Non-Vpat

2800 psi

Bulldozer - Tilt - Vpat

3125 psi

Bulldozer - Angle - Vpat

3125 psi

Ripper - Lift - Non-Vpat

2800 psi

Ripper - Lift - Vpat

3125 psi

Hydraulic Controls - Pump

Lift Cylinder Flow

50 gal/min

Ripper Cylinder Flow

50 gal/min

Pump Output - Steering

52 gal/min

Pump Output - Implement

54 gal/min

Tilt Cylinder Flow

29 gal/min

Rpm At Rated Engine Speed - Fan

2135rpm

Rpm At Rated Engine Speed - Steering

2854rpm

Angle Cylinder Flow - Vpat

45 gal/min

Rpm At Rated Engine Speed - Implement

2135rpm

Pump Output - Fan

25 gal/min

Rippers

Maximum Penetration Force

14557lb

Pry-Out Force

20137lb

Overall Beam Width

87in

Weight - With One Shank

3606lb

Weight - Each Additional Shank

163lb

Ramp Angle

26degrees

Pocket Spacing

39.4in

Shank Gauge

78.8in

Shank Section

74 mm 175 mm (2.9 in 6.9 in)

Rippers Type

Fixed Parallelogram

Number Of Pockets

3

Maximum Clearance Raised - Under Tip, Pinned In Bottom Hole

20.2in

Maximum Penetration

18in

Winches

Oil Capacity

17.8gal

Winch Model

PA56

Increased Tractor Length - Lgp

14.4in

Drum Diameter

10in

Winch Drive

Mechanical

Maximum Bare Drum - Line Pull

89800lb

Maximum Full Drum - Line Pull

76300lb

Maximum Bare Drum - Line Speed

130 ft/min

Maximum Full Drum - Line Speed

224 ft/min

Winch Case - Width

34.3in

Flange Diameter

19.9in

Drum Width

12.4in

Weight

2652lb

Winch And Bracket Length

47.8in

Winch Case - Length

35.5in

Control

Electric

Rope Diameter - Recommended

0.9in

Overall Width

38.4in

Cable Ferrule Size - O.D. Length

54 mm 67 mm (2.1 in 2.6 in)

Increased Tractor Length - Xl/Xw

20.4in

Drum Capacity - 22 Mm (0.88 In)

281ft in

Drum Capacity - 25 Mm (1.0 In)

218ft in
