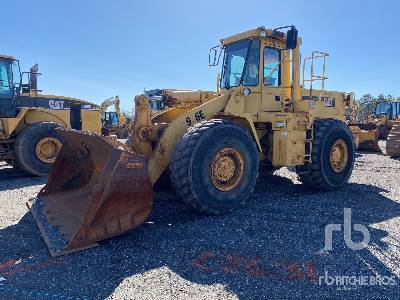

Caterpillar 966E Wheel Loader

Caterpillar 966E Wheel Loader Specs front
Caterpillar 966E Wheel Loader Specs front
Caterpillar 966E Wheel Loader Specs side
Caterpillar 966E Wheel Loader Specs side
Caterpillar 966E Wheel Loader Specs back
Caterpillar 966E Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.76 ft in

Dimensions

A

Length with Bucket on Ground

26.92 ft in

B

Width Over Tires

9.81 ft in

C

Height to Top of Cab

11.75 ft in

D

Wheelbase

11 ft in

E

Ground Clearance

1.65 ft in

F

Hinge Pin - Max Height

1.51 ft in

H

Reach at Max Lift and Dump

4.22 ft in


Specifications

Engine

Engine Make

2236

Engine Model

3306

Gross Power

216 hp

Displacement

640.8 cu in

Operational

Operating Weight

44551.1 lb

Fuel Capacity

80.4 gal

Hydraulic System Fluid Capacity

54.2 gal

Static Tipping Weight

30547.3 lb

Turning Radius

23.4 ft in

Tire Size

26.5-25 14PR

Transmission

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

23.8 mph

Max Speed - Reverse

27.1 mph

Hydraulic System

Raise Time

7.1 sec

Dump Time

2 sec

Lower Time

2.4 sec

Bucket

Breakout Force

41918 lb

Dump Clearance at Max Raise

9.8 ft in

Bucket Width

10.1 ft in

Bucket Capacity - heaped

4.8 yd3

Bucket Capacity - struck

4.2 yd3

Dimensions

Length with Bucket on Ground

27 ft in

Width Over Tires

9.9 ft in

Height to Top of Cab

11.8 ft in

Ground Clearance

1.7 ft in

Wheelbase

11 ft in

Hinge Pin - Max Height

1.6 ft in

Reach at Max Lift and Dump

4.3 ft in
