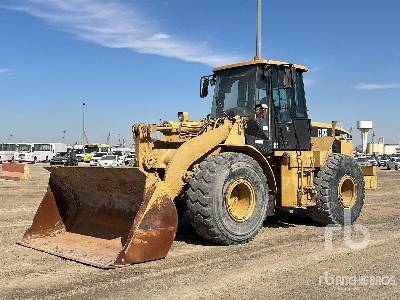

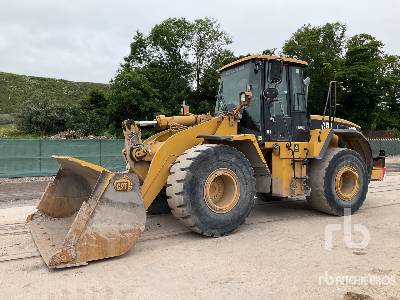

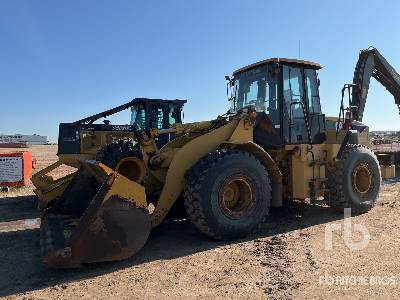

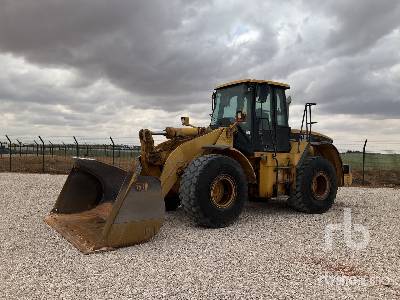

Caterpillar 950G Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.49 ft in

Dimensions

A

Length with Bucket on Ground

26.33 ft in

B

Width Over Tires

9.49 ft in

C

Height to Top of Cab

11.49 ft in

E

Ground Clearance

1.32 ft in

H

Reach at Max Lift and Dump

4.17 ft in


Specifications

Engine

Engine Model

3126DITA

Net Power

197 hp

Gross Power

180 hp

Displacement

439.4 cu in

Engine Model

Cat? 3126 DITA

Flywheel Power

180 hp

Maximum Flywheel Power

197 hp

Operational

Operating Weight

39202.7 lb

Fuel Capacity

78 gal

Hydraulic System Fluid Capacity

40.5 gal

Static Tipping Weight

26885.4 lb

Transmission

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

23 mph

Max Speed - Reverse

25.2 mph

Travel Speed

23 mph

Forward - 1

4.3 mph

Forward - 2

7.9 mph

Forward - 3

13.9 mph

Forward - 4

23 mph

Reverse - 1

4.8 mph

Reverse - 2

8.7 mph

Reverse - 3

15.3 mph

Reverse - 4

25.2 mph

Weights

Operating Weight

39200 lb

Buckets

Maximum Bucket Capacity

4.5 yd3

Bucket Capacities

2.7-3.5 m3 3.5-4.5 yd3

Hydraulic System

Raise Time

6.3 sec

Dump Time

2.2 sec

Lower Time

2.2 sec

Hydraulic Cycle Time - Total

10.7 s

Hydraulic Cycle Time - Lower, Empty, Float Down

2.2 s

Hydraulic Cycle Time - Raise

6.3 s

Hydraulic Cycle Time - Dump

2.2 s

Bucket

Breakout Force

32810 lb

Dump Clearance at Max Raise

9.5 ft in

Bucket Width

9.7 ft in

Bucket Capacity - heaped

3.5 yd3

Axles

Front

Fixed

Rear

Trunnion

Maximum Single-Wheel Rise and Fall

18.5 in

Dimensions

Length with Bucket on Ground

26.4 ft in

Width Over Tires

9.5 ft in

Height to Top of Cab

11.5 ft in

Ground Clearance

1.4 ft in

Reach at Max Lift and Dump

4.2 ft in

Operating Specifications

Static Tipping Load - Full Turn

22944 lb

Dump Clearance

9.5 ft in

Breakout Force

32810 lb

Service Refill Capacities

Cooling System

13 gal

Crankcase

8 gal

Hydraulic Tank

23.3 gal

Hydraulic System - Including Tank

40.5 gal

Fuel Tank - Standard

78 gal

Transmission

9 gal

Differential - Final Drives - Front

9.6 gal

Differential - Final Drives - Rear

9.6 gal
