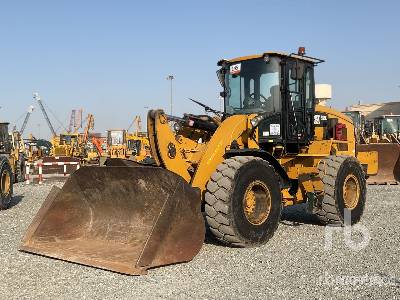

Caterpillar 938K Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
MODEL.UNITS

Dimensions

Dimensions

Bucket Pin Height - Maximum Lift

13ft in

Carry Height

1.5ft in

Centerline Of Front Axle To Hitch

5ft in

Digging Depth

3.9in

Dump Angle At Maximum Lift

49degrees

Dump Clearance At Maximum Lift - 45 Degrees

9.25ft in

Height - Center Of Axle

2.16ft in

Height - Top Of Rops/Fops

10.9ft in

Length - Rear Axle To Bumper

6.4ft in

Overall Height - Bucket Raised

17.25ft in

Overall Length

25.1ft in

Rack Back Angle - Carry

45degrees

Rack Back Angle - Maximum Lift

54degrees

Reach At Maximum Lift And 45 Degrees Dump

3.75ft in

Wheel Base

10ft in

Wheel Base Length

10ft in


Specifications

Engine

Number Of Cylinders

6

Engine Make

2236

Engine Model

C7.1 ACERT

Net Power

169hp

Gross Power

175hp

Max Torque

672lb ft

Displacement

402cu in

Net Torque

591lb ft

Torque Measured @

1600rpm

Bore

4in

Stroke

5in

Eec 80/1269

170hp

Rated Net Power

169hp

Sae J1349

169hp

Iso 9249 (1997)

170hp

Operational

Operating Weight

34129lb

Fuel Capacity

51.5gal

Hydraulic System Fluid Capacity

23.8gal

Cooling System Fluid Capacity

8.5gal

Transmission Fluid Capacity

2.9gal

Front Axle/Diff Fluid Capacity

9.2gal

Rear Axle/Diff Fluid Capacity

9.2gal

Tire Size

20.5

Transmission

Number Of Forward Gears

4

Number Of Reverse Gears

4

Max Speed - Forward

25mph

Max Speed - Reverse

25mph

Forward - 1

8mph

Reverse - 1

8mph

Steering

Steering Angle - Each Direction

40degrees

Steering Cylinder, Two, Bore

3.1in

Maximum Working Pressure

3500 psi

Steering Articulation

40degrees

Transmission

2

8mph

3

17mph

4

25mph

Standard Transmission Maximum Travel Speeds

25mph

Weights

Operating Weight

35104lb

Tires

Size

20.5 R25, radial (L-3)

Buckets

Bucket Capacities

2.5 m3 - 5.0 m3 3.2 yd3 - 6.5 yd3

Hydraulic System

Relief Valve Setting

4061psi

Pump Flow Capacity

50gal/min

Raise Time

6.2sec

Dump Time

1.5sec

Lower Time

2.7sec

Operating Specifications

Static Tipping Load - Full Turn

20997lb

Articulation Angle

40degrees

Reach - Full Lift And 45 Degrees Dump

3.8ft in

Dump Clearance At Full Lift And 45 Degrees Dump Angle

9.3ft in

Service Refill Capacities

Cooling System

7.9gal

Fuel Tank

51.5gal

Crankcase

5.3gal

Hydraulic Tank

23.8gal

Hydraulic System - Including Tank

44.9gal

Transmission

2.9gal

Front

9.2gal

Rear

9.2gal

Cab

Rops

SAE J1040 MAY94, ISO 3471-1994

Fops

SAE J/ISO 3449 APR98 Level II, ISO 3449 1992 Level II

Loader Hydraulic System

Pump Flow - Implement Pump

50 gal/min

Maximum Working Pressure

4061 psi

Raise

5.5 s

Dump

1.5 s

Lower, Empty, Float Down

2.7 s

Total

9.7 s

Bore (1)

4.7in

Stroke (1)

31.1in

Bore (2)

5.9in

Stroke (2)

21.9in

Hydraulic Cycle Time

9.7 sec
