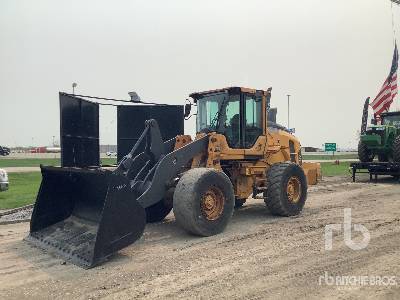

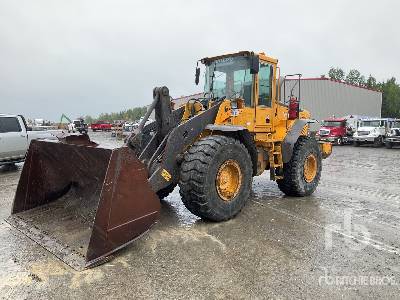

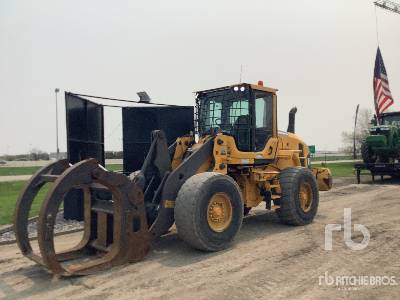

Volvo L60G Wheel Loader
Units
Dimensions
Dimensions
E
Ground Clearance
1.5ft in
A
Length With Bucket On Ground
24ft in
B
Width Over Tires
8ft in
C
Height To Top Of Cab
10.6ft in
D
Wheelbase
9.81ft in
F
Hinge Pin - Max Height
12.7ft in
H
Reach At Max Lift And Dump
3.4ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2244
Engine Model
D6E LCE3
Net Power
153hp
Gross Power
154hp
Power Measured @
1700rpm
Displacement
348cu in
Torque Measured @
1600rpm
Aspiration
TURBOCHARGED
Operational
Operating Weight
26020lb
Fuel Capacity
59.2gal
Hydraulic System Fluid Capacity
23.8gal
Engine Oil Fluid Capacity
5.3gal
Cooling System Fluid Capacity
7.9gal
Transmission Fluid Capacity
5.3gal
Front Axle/Diff Fluid Capacity
6.3gal
Rear Axle/Diff Fluid Capacity
6.3gal
Turning Radius
17.5ft in
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Tire Size
20.5
Transmission
Transmission Type
VOLVO HTE 110
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
26.8mph
Max Speed - Reverse
26.8mph
Hydraulic System
Relief Valve Setting
3770psi
Pump Flow Capacity
38gal/min
Raise Time
4.5sec
Dump Time
2.9sec
Lower Time
2.6sec
