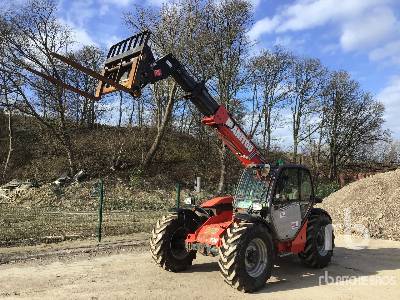

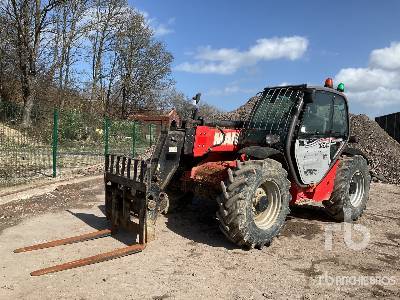

Manitou MT 732 EASY Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
15.62ft in
E
Ground Clearance
1.48ft in
B
Width Over Tires
7.68ft in
C
Overall Height
7.55ft in
D
Wheelbase
9.22ft in
Turning Radius Outside Tires
12.47ft in
Lift
F
Max Lift Height
22.64ft in
Lowering Time - Unladen
5.8sec
Boom Retraction Time - Unladen
4.7sec
Crowd
3sec
Dump
2.9sec
Lifting Time - Unladen
6.8sec
Boom Extension Time - Unladen
6.8sec
Max Lift Capacity
7054.8lb
Specifications
Engine
Transmission Type
Torque converter
Number Of Cylinders
4
Engine Make
Deutz
Gross Power
75hp
Cooling System
Water
Max Torque
243.4lb ft
Displacement
203.3cu in
Fuel Type
Diesel
Emission Level
Stage IV / Tier 4 Final
Injection
Direct
Operational
Operating Weight
14947.4lb
Fuel Capacity
31.8gal
Hydraulic System Fluid Capacity
33.9gal
Tire Size
400/80-24
Transmission
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
15.6mph
Hydraulic
Pump Type
Gear type with priority valve
Pump Flow Capacity
27.5gal/min
Relief Valve Pressure
3771psi
