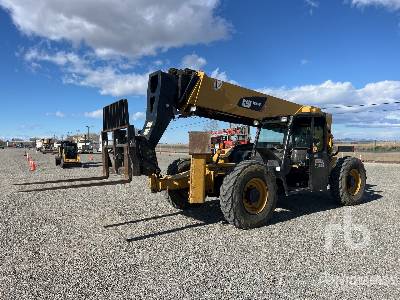

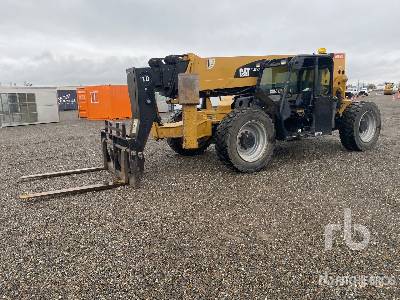

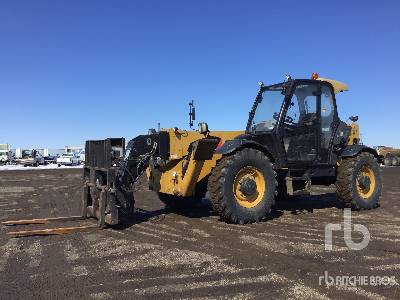

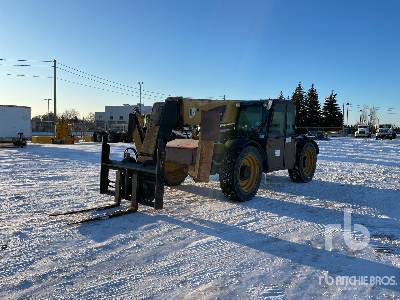

Caterpillar TH220B Telescopic Forklift

Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
MODEL.UNITS

Dimensions

Dimensions

A

Length To Fork Face

15.5ft in

E

Ground Clearance

1.4ft in

B

Width Over Tires

7.58ft in

C

Overall Height

7.33ft in

D

Wheelbase

9.58ft in

Height - Top Of Hood

68.28in

Height

7.4ft in

Length - Front Of Tire

13.81ft in

Turning Radius - Over Tires

10.9ft in

Turning Radius Outside Tires

10.75ft in

Wheel Base

9.7ft in

Width

7.7 ft

Length - Fork Face

15.6ft in

Rear - Overhang

2.1 ft

Turning Radius - Over Forks

14.3ft in

Lift

F

Max Lift Height

20ft in

G

Max Forward Reach

10.42ft in

Max Load At Max Height

3300lb

Max Load At Max Reach

3300lb

Max Lift Capacity

7000lb


Specifications

Engine

Number Of Cylinders

4

Engine Make

2236

Engine Model

3054E

Gross Power

99.9hp

Net Power

95hp

Power Measured @

2200rpm

Max Torque

302.5lb ft

Torque Measured @

1400rpm

Displacement

268cu in

Bore

4in

Stroke

5in

Engine Model

Cat 3054E

Gross Power - Basic

99.9hp

Net Power (Basic)

94.9hp

Gross Power - Premium

120hp

Net Power (Premium)

117.5hp

Maximum Torque - Basic

300lb ft

Maximumtorque - Premium

330lb ft

Net Power (Premium With Reverse Fan System)

116.7hp

Operational

Operating Weight

14771lb

Fuel Capacity

26.4gal

Hydraulic System Fluid Capacity

15.6gal

Tire Size

15.5 - 25 SGL - 2A Goodyear

Transmission

Transmission Type

Power shift

Number Of Forward Gears

4

Number Of Reverse Gears

3

Max Speed - Forward

25mph

Max Speed - Reverse

13mph

Tires

Standard

15.5-25 SGL-2A Goodyear

Weights

Operating Weight

14771lb

Hydraulic

Pump Type

Axial Piston Pump

Pump Flow Capacity

28gal/min

Relief Valve Pressure

3626psi

Hydraulic System

Pump Type

Variable Displacement Load Sensing Axial Piston Pump

Auxiliary Hydraulic Supply - Intermittent

24 gal/min

Auxiliary Hydraulic Supply - Continuous

15.6 gal/min

Maximum System Pressure

3626 psi

Maximum Pump Flow

28 gal/min

Operating Specifications

Rated Load Capacity

7000lb

Maximum Lift Height

20ft in

Maximum Forward Reach

10.5ft in

Top Travel Speed

25mph

Load At Maximum Height

3300lb

Load At Maximum Reach

3300lb

Load At Maximum Reach - No Stabilizers

3300lb

Service Refill Capacities

Fuel Tank

26.4gal

Hydraulic Tank

15.6gal

Additional Fuel Tank

13gal

Boom Performance

Boom Up

5 s

Boom Down

4 s

Tele In

5 s

Tele Out

6 s

Crowd Forward - Dump

3 s

Crowd Backward

3 s

Combined - Up And Out

10 s

Combined - Down And In

5 s

Drawbar Pull - Basic

17985lb

Bucket Breakout Force

12365lb

Boom Breakout Force

6924lb

Drawbar Pull - Premium

21357lb

Transmission Speeds

Forward - 4

25mph

Forward - 1

4mph

Forward - 2

7mph

Forward - 3

13mph

Reverse - 1

4mph

Reverse - 2

7mph

Reverse - 3

13mph
