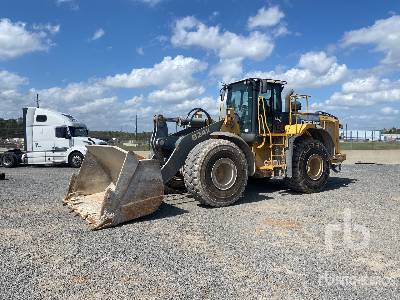

John Deere 824K Z-Bar Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
10.47ft in
Bucket Capacity - Heaped
6.02yd3
Bucket Capacity - Struck
5.24yd3
Bucket Width
10.73ft in
Breakout Force
41678lb
Dimensions
E
Ground Clearance
1.51ft in
A
Length With Bucket On Ground
30.39ft in
B
Width Over Tires
10.06ft in
C
Height To Top Of Cab
11.49ft in
D
Wheelbase
11.36ft in
F
Hinge Pin - Max Height
14.7ft in
H
Reach At Max Lift And Dump
4.2ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6135H, Tier III certified
Net Power
333hp
Power Measured @
1600rpm
Max Torque
1194lb ft
Displacement
824cu in
Torque Measured @
900rpm
Aspiration
Turbocharged charge air cooled
Torque Rise
59%
Operational
Operating Weight
57783.2lb
Fuel Capacity
124.1gal
Hydraulic System Fluid Capacity
42.1gal
Engine Oil Fluid Capacity
10.1gal
Cooling System Fluid Capacity
12.6gal
Transmission Fluid Capacity
7.4gal
Front Axle/Diff Fluid Capacity
12.2gal
Rear Axle/Diff Fluid Capacity
12.2gal
Static Tipping Weight
45212.4lb
Turning Radius
19.5ft in
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Rear Axle Oscillation
26degrees
Tire Size
26.5 R 25
Transmission
Transmission Type
Countershaft, powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
24.9mph
Max Speed - Reverse
18.8mph
Hydraulic System
Relief Valve Setting
3650psi
Pump Flow Capacity
135.6gal/min
Raise Time
5.9sec
Dump Time
1.3sec
Lower Time
2.5sec
Pump Type
two variable displacement, load-sensing axial piston
