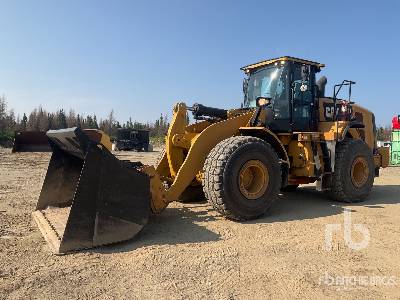

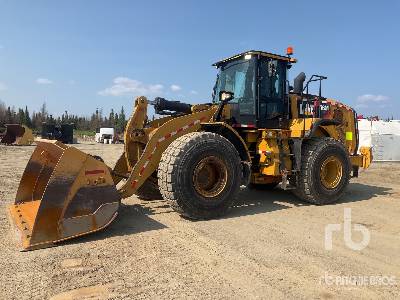

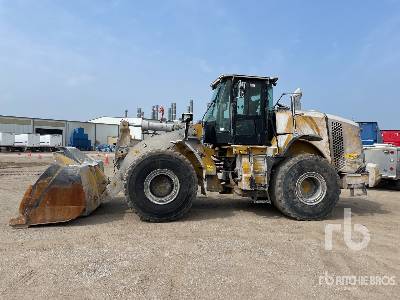

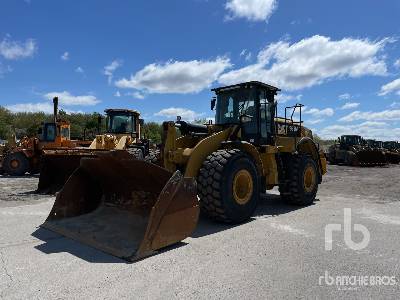

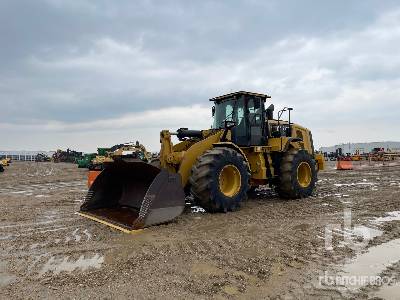

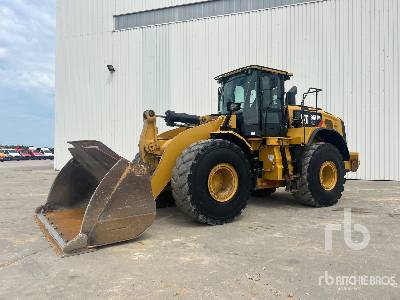

Caterpillar 966M Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Dimensions - High Lift

E

Ground Clearance

1.42ft in

Wheel Base

11.67ft in

Centerline Of Rear Axle To Edge Of Counterweight

8.17ft in

Centerline Of Rear Axle To Hitch

5.83ft in

Height - Top Of Exhaust Pipe

11.58ft in

Height - Top Of Hood

9.25ft in

Height - Top Of Rops

11.75ft in

Hinge Pin Height At Carry

2.58ft in

Hinge Pin Height At Maximum Lift

15.75ft in

Lift Arm Clearance At Maximum Lift

13.58ft in

Maximum Width Over Tires

9.83ft in

Overall Length - Without Bucket

26.58ft in

Rack Back - Carry Height

49 degrees

Rack Back - Maximum Lift

71 degrees

Rack Back At Ground

39 degrees

Tread Width

7.33ft in

Note

All dimensions are approximate and based on L3 XHA2 tires.

Dimensions - Standard Lift

E

Ground Clearance

1.42ft in

Rack Back - Maximum Lift

62 degrees

Centerline Of Rear Axle To Edge Of Counterweight

7.17ft in

Lift Arm Clearance At Maximum Lift

11.92ft in

Centerline Of Rear Axle To Hitch

5.83ft in

Maximum Width Over Tires

9.83ft in

Note

All dimensions are approximate and based on L3 XHA2 tires.

Tread Width

7.33ft in

Height - Top Of Exhaust Pipe

11.58ft in

Height - Top Of Hood

9.25ft in

Overall Length - Without Bucket

23.92ft in

Height - Top Of Rops

11.75ft in

Rack Back At Ground

42 degrees

Hinge Pin Height At Carry

2.08ft in

Rack Back - Carry Height

50 degrees

Wheel Base

11.67ft in

Hinge Pin Height At Maximum Lift

13.92ft in


Specifications

Engine

Displacement

568cu in

Bore

4.6in

Stroke

5.9in

Net Power - Iso 9249

276hp

Engine Model

Cat? C9.3 ACERT?

Note

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.

Peak Gross Torque - 1,200 Rpm - Sae J1995

1179lb ft

Peak Gross Torque - 1,200 Rpm - Iso 14396

1166lb ft

Maximum Net Power - 1,700 Rpm - Iso 9249

276hp

Maximum Net Power - 1,700 Rpm - Iso 9249 - Metric

280hp

Maximum Net Power - 1,700 Rpm - Sae J1349

276hp

Maximum Net Power - 1,700 Rpm - Sae J1349 - Metric

280hp

Maximum Net Torque - 1,000 Rpm

1126lb ft

Maximum Power - 1,800 Rpm - Iso 14396

307hp

Maximum Power - 1,800 Rpm - Iso 14396 - Metric

311hp

Maximum Power - 1,800 Rpm - Sae J1995

311hp

Maximum Power - 1,800 Rpm - Sae J1995 - Metric

315hp

Maximum Gross Power - Sae J1995

311hp

Maximum Net Power - Sae J1349

276hp

Maximum Gross Power - 1,800 Rpm - Sae J1995

311hp

Maximum Net Torque - 1,000 Rpm - Sae J1349

1126lb ft

Operational

Operating Weight

51176lb

Transmission

Forward - 1

4mph

Forward - 2

8.1mph

Forward - 3

14.6mph

Forward - 4

24.9mph

Note

Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32.5 in) roll radius.

Reverse - 1

4.4mph

Reverse - 2

8.9mph

Reverse - 3

16.1mph

Reverse - 4

24.9mph

Weights

Operating Weight

51176lb

Note

Weight based on a machine configuration with Michelin 26.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link?, manual diff lock/open axles (front/rear), power train guard, secondary steering, sound suppression and a 4.2 m3 (5.5 yd3) general purpose bucket with BOCE.

Buckets

Bucket Capacities

2.5-9.2 m? (3.25-12.0 yd?)

Axles

Front

Fixed

Rear

Oscillating ?13 degrees

Maximum Single-Wheel Rise And Fall

19.5in

Hydraulic System

Hydraulic Cycle Time - Total

10.1 s

Implement System - Maximum Operating Pressure

4496 psi

Implement Pump Type

Variable Displacement Piston

Implement System - Maximum Pump Output At 2,200 Rpm

95 gal/min

Hydraulic Cycle Time - Rated Payload - Raise From Carry Position

6.1 s

Hydraulic Cycle Time - Rated Payload - Dump, At Maximum Raise

1.4 s

Hydraulic Cycle Time - Rated Payload - Lower, Empty, Float Down

2.6 s

Hydraulic Cycle Time - Rated Payload - Total

10.1 s

Implement System - Optional 3rd/4th Function Maximum Flow

69 gal/min

Implement System - Optional 3rd/4th Function Maximum Pressure

3000 psi

Brakes

Brakes

Brakes meet ISO 3450 standards

Operating Specifications

Note (1)

For a machine configuration as defined under ?Weight.?

Note (2)

Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Breakout Force

38984lb

Static Tipping Load - Full 37 Degrees Turn - With Tire Deflection

32329lb

Static Tipping Load - Full 37 Degrees Turn - No Tire Deflection

34873lb

Service Refill Capacities

Cooling System

18.9gal

Fuel Tank

82.7gal

Crankcase

6.5gal

Def Tank

4.4gal

Hydraulic Tank

33gal

Transmission

15.5gal

Differential - Final Drives - Front

15.1gal

Differential - Final Drives - Rear

15.1gal

Note

*Must meet the requirements outlined in ISO 22241-1.

Def Tank*

4.4gal

Sound

Note (1)

These sound values are for specific operating conditions only.

Note (2)

Machine and operator sound levels will vary at different engine and/or cooling fan speeds.

Note (3)

Hearing protection may be needed when the machine is operated with a cabin that is not properly maintained.

Note

*Distance of 15 m (49.2 ft), moving forward in second gear ratio.

With Cooling Fan Speed At Maximum Value - Operator Sound Pressure Level (Iso 6396:2008)

70 dB(A)

With Cooling Fan Speed At Maximum Value - Exterior Sound Power Level (Iso 6395:2008)

109 dB(A)

With Cooling Fan Speed At Maximum Value - Exterior Sound Pressure Level (Sae J88:2013)

76 dB(A)*

With Cooling Fan Speed At 70% Of Maximum Value - Operator Sound Pressure Level (Iso 6396:2008)**

69 dB(A)

With Cooling Fan Speed At 70% Of Maximum Value - Exterior Sound Power Level (Iso 6395:2008)**

108 LWA***

Exterior Sound Power Level - Iso 6395:2008

109 dB(A)

Exterior Sound Pressure Level - Sae J88:2013

76 dB(A)

Operator Sound Pressure Level - Iso 6396:2008

70 dB(A)

Note (4)

Hearing protection also may be needed when the doors and/or windows are open for extended periods or in a noisy environment.

Cab

Rops/Fops

ROPS/FOPS meet ISO 3471 and ISO 3449 Level II standards

Bucket Capacities

Bucket Range

3.20-7.40 m (4.19-9.68 yd)

Engine - Tier 3/Stage Iiia Equivalent

Emissions

Tier 3/Stage IIIA

Engine - Tier 4 Final/Stage Iv

Emissions

Tier 4/Stage IV
