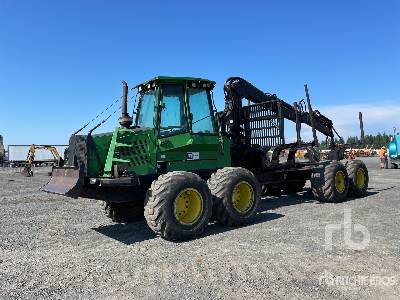

John Deere 810D Forwarder

John Deere 810D Forwarder Specs front
John Deere 810D Forwarder Specs front
John Deere 810D Forwarder Specs back
John Deere 810D Forwarder Specs back
John Deere 810D Forwarder Specs extended
John Deere 810D Forwarder Specs extended
Units

Dimensions

Dimensions

A

Length

26.35 ft in

B

Width Over Tires

8.31 ft in

C

Height to Top of crane

12.41 ft in

D

Wheelbase

13.92 ft in

E

Ground Clearance

1.96 ft in

F

Length of Bunk Area

12.6 ft in

G

Width of Bunk Area

8.04 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2240

Engine Model

4045HTJ

Power

115 hp

Torque

367 lb ft

Power Measured @

2000 rpm

Displacement

274.7 cu in

Torque Measured @

1400 rpm

Operational

Operating Weight - 8wd

24185 lb

Fuel Capacity

29.1 gal

Hydraulic System Fluid Capacity

20.7 gal

Operating Voltage

24 V

Alternator Supplied Amperage

100 amps

Front/Rear Tire Size - 8wd

600x22.5/600x22.5

Transmission

Transmission Type

hydrostatic/mechanical

Number of Forward Gears

2

Number of Reverse Gears

2

Max Speed

14.3 mph

Hydraulic

Pump Type

load-sensing

Relief Valve Pressure

3481 psi

Bunk

Load Weight - 8wd

19841.7 lb

Load Area

36.6 ft2

Crane

Crane Type

John Deere CFI

Max Reach

32.2 ft in

Gross Lift Torque

56054.8 lb ft

Gross Slew Torque

14013.7 lb ft

Dimensions

Length

26.4 ft in

Width Over Tires

8.4 ft in

Height to Top of Crane

12.5 ft in

Wheelbase

14 ft in

Ground Clearance

2 ft in

Length of Bunk Area

12.6 ft in

Width of Bunk Area

8.1 ft in
