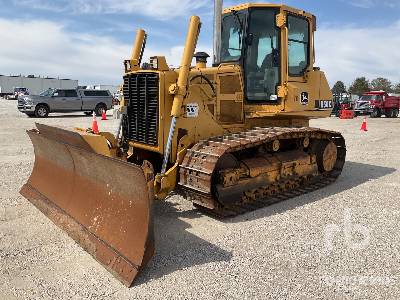

John Deere 550G Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
13.36ft in
B
Width Over Tracks
7.75ft in
C
Height To Top Of Cab
9.09ft in
D
Length Of Track On Ground
7.12ft in
E
Ground Clearance
1.19ft in
Undercarriage
H
Standard Shoe Size
18in
Track Pitch
6.29in
Number Of Shoes Per Side
40
Ground Pressure
6.47psi
Ground Contact Area
2732in2
Number Of Track Rollers Per Side
6
Specifications
Engine
Number Of Cylinders
4
Engine Make
2240
Engine Model
4045T
Gross Power
8hp
Net Power
80hp
Power Measured @
2100rpm
Max Torque
260lb ft
Displacement
276cu in
Torque Measured @
1300rpm
Aspiration
Altitude-compensating turbocharged
Operational
Operating Weight
17683lb
Fuel Capacity
41gal
Cooling System Fluid Capacity
4.5gal
Engine Oil Capacity
3.3gal
Hydraulic Fluid Capacity
14.6gal
Powertrain Fluid Capacity
27gal
Final Drives Fluid Capacity
2.6gal
Operating Voltage
12V
Alternator Supplied Amperage
65amps
Transmission
Transmission Type
Full power shift
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
5.9mph
Max Speed - Reverse
5.9mph
Hydraulic System
Pump Type
Gear
Relief Valve Pressure
2750psi
Pump Flow Capacity
17gal/min
Standard Blade
Width
8.8ft in
Height
33.3in
Capacity
2.3yd3
Blade Angle (Both Directions)
25degrees
Cutting Depth
18.1in
