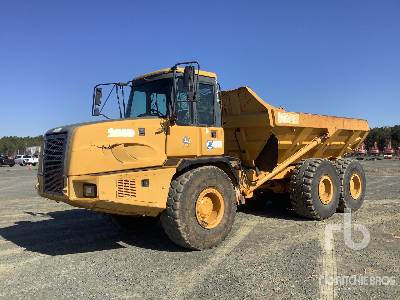

John Deere 300C Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
30.25ft in
B
Overall Width
10.75ft in
C
Overall Height
11.25ft in
D
Wheelbase
13.5ft in
E
Ground Clearance
1.68ft in
F
Dump Height
19.93ft in
G
Dump Ground Clearance
2.1ft in
Dump
H
Dump Angle
65degrees
Lower Time
7sec
Rated Payload
59524lb
Capacity - Struck
17yd3
Raise Time
14sec
Capacity - Heaped
22yd3
Specifications
Engine
Engine Make
2346
Engine Model
OM442
Gross Power
261hp
Net Power
251hp
Power Measured @
2100rpm
Max Torque
723lb ft
Torque Measured @
1300rpm
Aspiration
Naturally aspirated
Displacement
920cu in
Operational
Fuel Capacity
71gal
Hydraulic System Fluid Capacity
21gal
Cooling System Fluid Capacity
10gal
Engine Oil Capacity
8gal
Transmission Fluid Capacity
4.2gal
Operating Voltage
24V
Alternator Supplied Amperage
55amps
Tire Size
23.5R25
Transmission
Transmission Type
ZF 6WG 210 countershaft design with integral drop box, constantly meshing gears, hydraulically actuated multiple-disc clutch, electronic control, hydrodynamic torque converter with lock-up, built-in PTO drive
Number Of Forward Gears
6
Number Of Reverse Gears
3
Max Speed
29mph
Weights
Center Axle - Empty
11442%
Front Axle - Empty
20150lb
Rear Axle - Empty
11001lb
Front Axle - Loaded
32165%
Center Axle - Loaded
35197%
Rear Axle - Loaded
34756lb
Total Empty
42593lb
Total Loaded
102118lb
