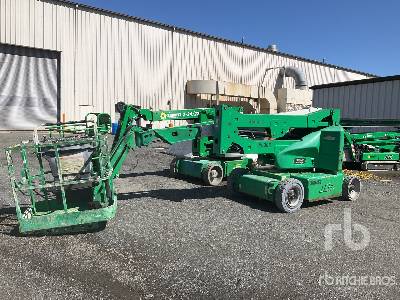

JLG E400A Boom Lift

Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Units

Dimensions

Dimensions

A

Overall Length

18.05 in

B

Overall Width

5.75 ft in

C

Overall Height - mast lowered

6.57 ft in

D

Wheelbase

6.57 ft in

E

Ground Clearance

8.67 in

Platform

F

Max Platform Height

40 ft in

G

Max Horizontal Reach

21.17 ft in


Specifications

Engine

System Voltage

48 V

Number of Batteries

8

Battery Amp Hours

370

Operational

Operating Weight

12099 lb

Max Speed

3.3 mph

Tire Size

240/55-17.5

Tire Fill/Type

pneumatic

Platform

Max Platform Height

40 ft in

Max Horizontal Reach

21.2 ft in

Max Platform Weight Capacity

500.5 lb

Platform Inner Length

48.1 in

Platform Inner Width

30 in

Platform Rotation

180 degrees

Dimensions

Wheelbase

6.6 ft in

Overall Length

18.1 in

Overall Width

5.8 ft in

Overall Height - mast lowered

6.6 ft in

Turning Radius

10.4 ft in

Ground Clearance

8.7 in


Compare similar models

Manufacturer / Model

Operating Weight

Max Platform Weight Capacity

Operating Weight

12264.4 lb

Max Platform Weight Capacity

500.5 lb

Operating Weight

12264.4 lb

Max Platform Weight Capacity

500.5 lb

Operating Weight

11999.8 lb

Max Platform Weight Capacity

500.5 lb
