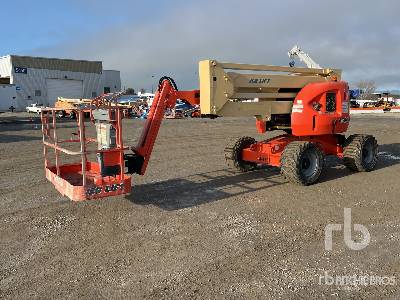

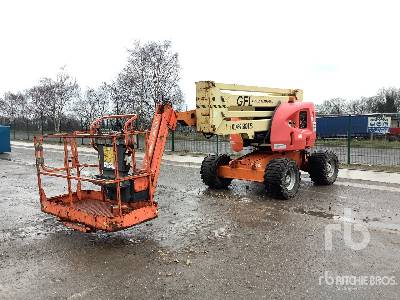

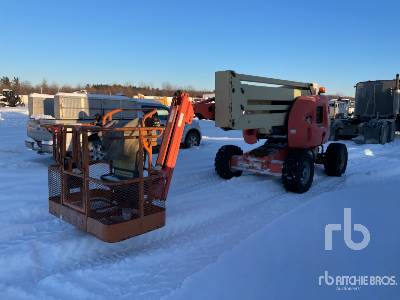

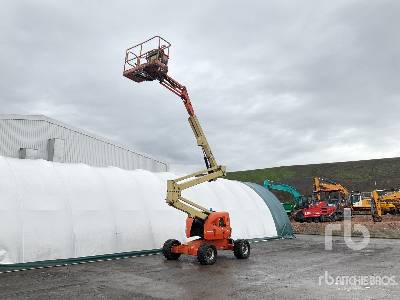

JLG 450AJ Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
21.7in
B
Overall Width
7.9ft in
C
Overall Height - Mast Lowered
7.5ft in
E
Ground Clearance
12in
Articulation Angle
144 degrees
Horizontal Outreach
25ft in
Turning Radius
15.8ft in
Up And Over Height
24ft in
Platform Dimension A
2.6ft in
Platform Dimension B
6ft in
Tailswing Radius
_-
Platform
Platform Capacity - Unrestricted
550lb
Platform Railing Height
45ft in
Specifications
Swing System
Swing
355degrees
Swing Type
Non-Continuous
Engine
Diesel Engine Type
Deutz D2.9 L4 Tier 4 Final
Diesel Engine Power
49hp
Dual Fuel Engine Type
GM Vortec 3000 MPFI
Maximum Ground Bearing Pressure
48psi
Dual Fuel Engine Power
82hp
System Voltage
12V
Operational
Operating Weight
12650lb
Fuel Capacity
16gal
Hydraulic System Fluid Capacity
36gal
Tire Size
33/1550 x 16.5 Superwide
Performance
Axle Oscillation
0.4ft in
Drive Speed
4.3mph
Gradeability
45%
