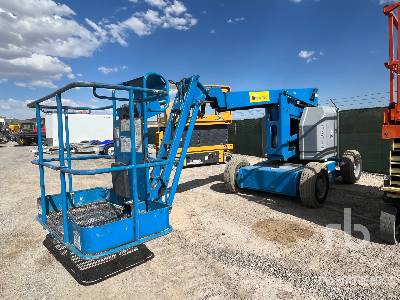

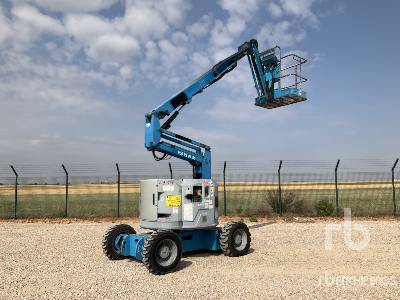

Genie Z34/22 Bi Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
18.51in
B
Overall Width
5.68ft in
C
Overall Height - Mast Lowered
6.57ft in
D
Wheelbase
6.17ft in
E
Ground Clearance
5.91in
Turning Radius
13.06ft in
Platform
F
Max Platform Height
34.52ft in
G
Max Horizontal Reach
22.25ft in
Platform Rotation
180degrees
Platform Inner Length
55.91in
Max Platform Weight Capacity
500.45lb
Max Working Height
41.08ft in
Platform Inner Width
29.93in
Specifications
Engine
Engine Make
2334
Gross Power
12hp
System Voltage
48V
Number Of Batteries
8
Battery Amp Hours
315
Operational
Operating Weight
11999.8lb
Fuel Capacity
9.3gal
Hydraulic System Fluid Capacity
4gal
Max Speed
4mph
Tire Size
9x14.5
Tire Fill/Type
Solid, non-marking
