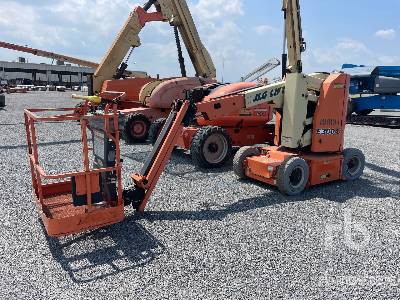

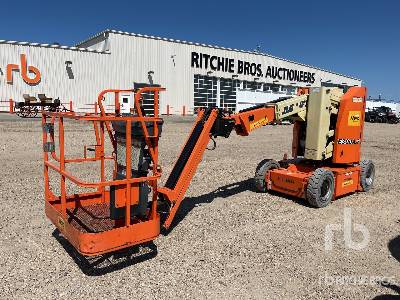

JLG E300AJ Boom Lift

JLG E300AJ Boom Lift Specs side
JLG E300AJ Boom Lift Specs side
JLG E300AJ Boom Lift Specs back
JLG E300AJ Boom Lift Specs back
JLG E300AJ Boom Lift Specs extended
JLG E300AJ Boom Lift Specs extended
Units

Dimensions

Dimensions

A

Overall Length

18.2 in

B

Overall Width

4 ft in

C

Overall Height - mast lowered

6.7 ft in

D

Wheelbase

5.5 ft in

E

Ground Clearance

4 in

Platform

F

Max Platform Height

30.2 ft in

G

Max Horizontal Reach

20.3 ft in


Specifications

Engine

System Voltage

48 V

Number of Batteries

8

Battery Amp Hours

370

Operational

Operating Weight

15060 lb

Hydraulic System Fluid Capacity

3.1 gal

Max Speed

3 mph

Tire Size

25 x 7 x 12

Tire Fill/Type

Non-marking

Performance

Drive Speed

3 mph

Gradeability

25 %

Swing

350 degrees

Platform Capacity

500 lb

Jib - Range of articulation

144 degrees

Platform

Max Working Height

13.2 ft in

Max Platform Height

30.2 ft in

Max Horizontal Reach

20.3 ft in

Max Platform Weight Capacity

500.5 lb

Platform Inner Length

48.1 in

Platform Inner Width

30 in

Platform Rotation

180 degrees

Platform Capacity - Unrestricted

500 lb

Dimensions

Wheelbase

5.5 ft in

Platform Dimension A

2.6 ft in

Platform Dimension B

4 ft in

Overall Length

18.2 in

Overall Width

4 ft in

Overall Height - mast lowered

6.7 ft in

Turning Radius

10.2 ft in

Ground Clearance

4 in
