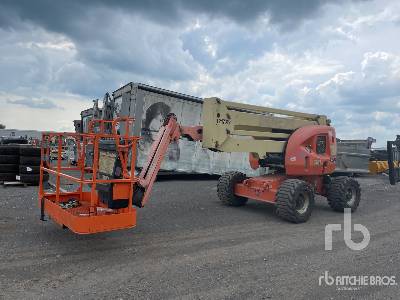

JLG 450A 2WD Boom Lift

Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Units

Dimensions

Dimensions

A

Overall Length

21.43in

B

Overall Width

6.83ft in

C

Overall Height - mast lowered

7.42ft in

D

Wheelbase

6.5ft in

E

Ground Clearance

14.18in

Platform

F

Max Platform Height

45.02ft in

G

Max Horizontal Reach

24.51ft in


Specifications

Engine

Engine Make

2349

Engine Model

F3M1011

Gross Power

47hp

Fuel Type

Diesel

Operational

Operating Weight

14499.9lb

Fuel Capacity

16.6gal

Hydraulic System Fluid Capacity

30.1gal

Max Speed

3.5mph

Tire Size

33/1550x16.5

Tire Fill/Type

Superwide

Platform

Max Platform Height

45.1ft in

Max Horizontal Reach

24.6ft in

Max Platform Weight Capacity

500.5lb

Platform Inner Length

72.1in

Platform Inner Width

30in

Platform Rotation

180degrees

Dimensions

Wheelbase

6.5ft in

Overall Length

21.5in

Overall Width

6.9ft in

Overall Height - mast lowered

7.5ft in

Turning Radius

14.1ft in

Ground Clearance

14.2in


Compare similar models

Manufacturer / Model

Operating Weight

Max Platform Weight Capacity

Operating Weight

14499.9 lb

Max Platform Weight Capacity

500.5 lb

Operating Weight

14499.9 lb

Max Platform Weight Capacity

500.5 lb

Operating Weight

14299.2 lb

Max Platform Weight Capacity

500.5 lb
`
