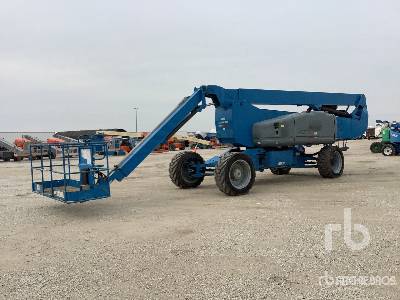

Genie Z45/25JRT 4wd Boom Lift

Genie Z45/25JRT 4wd Boom Lift Specs side
Genie Z45/25JRT 4wd Boom Lift Specs side
Genie Z45/25JRT 4wd Boom Lift Specs back
Genie Z45/25JRT 4wd Boom Lift Specs back
Genie Z45/25JRT 4wd Boom Lift Specs extended
Genie Z45/25JRT 4wd Boom Lift Specs extended
Units

Dimensions

Dimensions

A

Overall Length

18.25 in

B

Overall Width

7.52 ft in

C

Overall Height - mast lowered

6.93 ft in

D

Wheelbase

6.67 ft in

E

Ground Clearance

15.36 in

Platform

F

Max Platform Height

46.17 ft in

G

Max Horizontal Reach

25.1 ft in


Specifications

Engine

Engine Make

2380

Engine Model

DSG-423

Gross Power

75 hp

Operational

Operating Weight

14499.9 lb

Fuel Capacity

17.1 gal

Hydraulic System Fluid Capacity

24 gal

Max Speed

5 mph

Tire Size

355/55 D625

Platform

Max Working Height

52.8 ft in

Max Platform Height

46.2 ft in

Max Horizontal Reach

25.1 ft in

Max Platform Weight Capacity

500.5 lb

Platform Inner Length

72.1 in

Platform Inner Width

30 in

Platform Rotation

180 degrees

Dimensions

Wheelbase

6.7 ft in

Overall Length

18.3 in

Overall Width

7.6 ft in

Overall Height - mast lowered

7 ft in

Turning Radius

14.8 ft in

Ground Clearance

15.4 in
