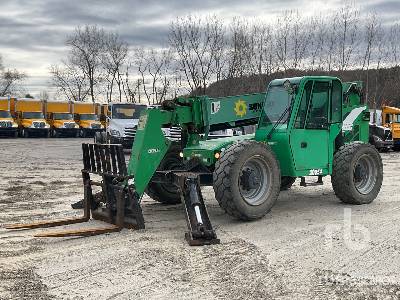

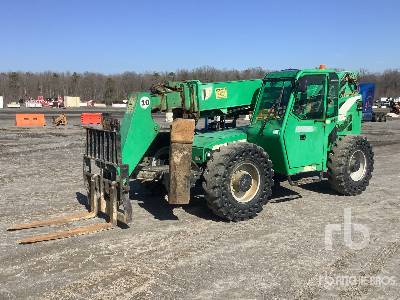

JLG 10054 Telescopic Forklift

Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Units

Dimensions

Dimensions

E

Ground Clearance

1.6ft in

C

Overall Height

8.4ft in

D

Wheelbase

10ft in

Width

8.6ft in

Overall Length

21ft in

Turning Radius Outside Tires

13.9ft in

Lift

F

Max Lift Height

53.2ft in

Max Lift Capacity

10000lb

Load Center

2ft in

Max Load At Max Height

4000lb

Max Load At Max Reach

1400lb


Specifications

Engine

Engine Model

QSF3.8L Tier 4 Final

Gross Power

110hp

Power Measured @

1500rpm

Capacities

Fuel Tank

35gal

Operational

Drawbar Pull

24500lb

Tire Size

400/75-28

Performance

Maximum Lift

16.4sec

Maximum Lower

14.7sec

Maximum Telescope In

15.9sec

Maximum Telescope Out

17.6sec

Maximum Travel

20mph

Transmission

Transmission Type

Powershift

Number Of Forward Gears

4

Number Of Reverse Gears

3

Weights

Operating Weight

28200lb

Hydraulic

Pump Type

Var Load Sensing Piston

Axles

Front

High Bias, Limited Slip

Rear

Oscillating

Brakes

Brakes Type

Wet Multi-Disc
