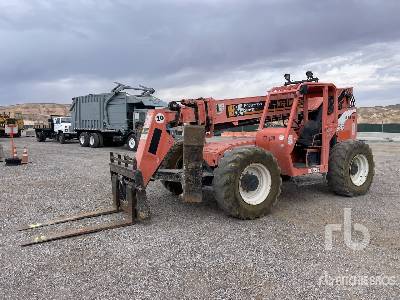

JLG 544D10-55 Telescopic Forklift

JLG 544D10-55 Telescopic Forklift Specs front
JLG 544D10-55 Telescopic Forklift Specs front
JLG 544D10-55 Telescopic Forklift Specs side
JLG 544D10-55 Telescopic Forklift Specs side
JLG 544D10-55 Telescopic Forklift Specs extended
JLG 544D10-55 Telescopic Forklift Specs extended
Units

Dimensions

Dimensions

A

Length to Fork Face

19.72 ft in

B

Width Over Tires

8.21 ft in

C

Overall Height

8.14 ft in

D

Wheelbase

11.23 ft in

E

Ground Clearance

1.74 ft in

Lift

F

Max Lift Height

55.12 ft in

G

Max Forward Reach

42 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2347

Engine Model

QSB4.5

Gross Power

130.1 hp

Power Measured @

2500 rpm

Displacement

274.7 cu in

Aspiration

turbocharged, aftercooled

Operational

Operating Weight

33999.7 lb

Fuel Capacity

38.1 gal

Operating Voltage

12 V

Alternator Supplied Amperage

65 amps

Drawbar Pull

18399.8 lb

Tire Size

14.0x24-12PR

Transmission

Transmission Type

hydrostatic

Max Speed - forward

19.1 mph

Hydraulic

Pump Type

single-section gear

Pump Flow Capacity

40 gal/min

Lift

Max Lift Capacity

10000.2 lb

Max Lift Height

55.2 ft in

Max Load at Max Height

3999.2 lb

Max Forward Reach

42 ft in

Dimensions

Length to Fork Face

19.8 ft in

Width Over Tires

8.3 ft in

Overall Height

8.2 ft in

Wheelbase

11.3 ft in

Ground Clearance

1.8 ft in

Turning Radius Outside Tires

14.6 ft in
