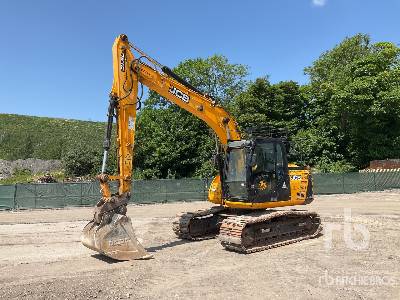

JCB JZ140 Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (Hex) 1

A

Shipping Length Of Unit

22.83ft in

C

Shipping Height Of Unit

9.33ft in

I

Max Cutting Height

28.92ft in

J

Max Loading Height

21.08ft in

K

Max Reach Along Ground

25.67ft in

L

Max Vertical Wall Digging Depth

15ft in

M

Max Digging Depth

16.93ft in

Boom/Stick Option (Hex) 1

Arm Length 6ft.11in.(2.10m) Boom 15ft.5in.(4.70m )

Boom/Stick Option (Hex) 2

A

Shipping Length Of Unit

22.92ft in

I

Max Cutting Height

29.83ft in

C

Shipping Height Of Unit

9.33ft in

J

Max Loading Height

22ft in

K

Max Reach Along Ground

26.92ft in

L

Max Vertical Wall Digging Depth

16.33ft in

M

Max Digging Depth

18.25ft in

Boom/Stick Option (Hex) 2

Arm Length 8ft.2in.(2.50m ) Boom 15ft.5in. (4.70m )

Boom/Stick Option (Hex) 3

A

Shipping Length Of Unit

23ft in

I

Max Cutting Height

30.83ft in

J

Max Loading Height

23ft in

C

Shipping Height Of Unit

9.33ft in

K

Max Reach Along Ground

28.42ft in

L

Max Vertical Wall Digging Depth

17.11ft in

M

Max Digging Depth

19.83ft in

Boom/Stick Option (Hex) 3

Arm Length 9ft.11in.(3.00m ) 15ft.5in. (4.70m )

Dimensions

E

Ground Clearance

1.5ft in

G

Height To Top Of Cab

9.33ft in

B

Width To Outside Of Tracks

8.17ft in

D

Length Of Track On Ground

9.13ft in

H

Tail Swing Radius

4.56ft in

Removal Counterweight Clearance

2.99ft in

Undercarriage

F

Track Gauge

6.5ft in

N

Shoe Size

20in

Max Travel Speed

3.3mph

Ground Pressure

6.68psi

Number Of Shoes Per Side

44

Number Of Carrier Rollers Per Side

1

Number Of Track Rollers Per Side

7

Drawbar Pull

29225lb


Specifications

Engine

Number Of Cylinders

4

Engine Make

2353

Engine Model

A4BGIT

Net Power

97.6hp

Power Measured @

2100rpm

Displacement

264cu in

Aspiration

Turbocharged

Operational

Operating Weight

31817lb

Fuel Capacity

43gal

Cooling System Fluid Capacity

4.3gal

Hydraulic System Fluid Capacity

33gal

Engine Oil Capacity

3.5gal

Operating Voltage

24V

Swing Drive Fluid Capacity

0.6gal

Alternator Supplied Amperage

40amps

Hydraulic System Relief Valve Pressure

4554psi

Hydraulic Pump Flow Capacity

32gal/min

Swing Mechanism

Swing Speed

12.8rpm

Buckets

Reference Bucket Capacity

1.1yd3

Minimum Bucket Capacity

0.5yd3

Maximum Bucket Capacity

1.1yd3
