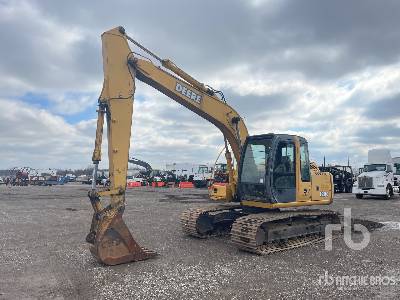

John Deere 120C Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
24.97ft in
C
Shipping Height Of Unit
8.99ft in
I
Max Cutting Height
27.71ft in
J
Max Loading Height
20.63ft in
K
Max Reach Along Ground
26.3ft in
L
Max Vertical Wall Digging Depth
16.06ft in
M
Max Digging Depth
17.87ft in
Boom/Stick Option (Hex) 1
8\'3\" (2520mm) stick
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
25ft in
I
Max Cutting Height
28.79ft in
C
Shipping Height Of Unit
8.99ft in
J
Max Loading Height
21.71ft in
K
Max Reach Along Ground
27.88ft in
L
Max Vertical Wall Digging Depth
17.64ft in
M
Max Digging Depth
19.48ft in
Boom/Stick Option (Hex) 2
9\'11\" (3010mm) stick
Dimensions
E
Ground Clearance
1.45ft in
G
Height To Top Of Cab
8.99ft in
B
Width To Outside Of Tracks
8.5ft in
D
Length Of Track On Ground
9.45ft in
H
Tail Swing Radius
6.99ft in
Removal Counterweight Clearance
2.92ft in
Undercarriage
F
Track Gauge
6.53ft in
N
Shoe Size
23.63in
Number Of Shoes Per Side
44
Drawbar Pull
22930lb
Number Of Track Rollers Per Side
7
Number Of Carrier Rollers Per Side
1
Max Travel Speed
3.42mph
Ground Pressure
4.89psi
Specifications
Engine
Number Of Cylinders
4
Engine Make
2240
Engine Model
4045H
Net Power
89hp
Power Measured @
2200rpm
Max Torque
275lb ft
Displacement
276cu in
Aspiration
Turbocharged air-to-air charge air cooler
Torque Measured @
1400rpm
Operational
Operating Weight
28840lb
Fuel Capacity
66.1gal
Cooling System Fluid Capacity
7.1gal
Hydraulic System Fluid Capacity
35.4gal
Operating Voltage
24V
Engine Oil Capacity
3.7gal
Swing Drive Fluid Capacity
0.8gal
Alternator Supplied Amperage
45amps
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
55.5gal/min
Swing Mechanism
Swing Speed
13.7rpm
Swing Torque
24387lb ft
Buckets
Reference Bucket Capacity
1.1yd3
Minimum Bucket Capacity
0.5yd3
Maximum Bucket Capacity
1.4yd3
