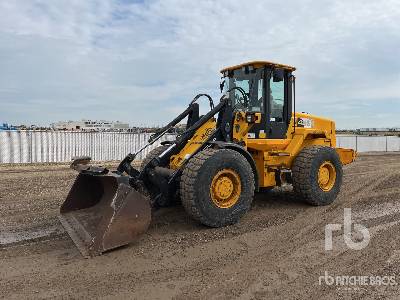

JCB 456HT Super High Lift Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

13.06ft in

Dimensions

A

Length with Bucket on Ground

31.01ft in

B

Width Over Tires

8.87ft in

C

Height to Top of Cab

11.06ft in

D

Wheelbase

10.83ft in

E

Ground Clearance

1.55ft in

F

Hinge Pin - Max Height

17.29ft in

H

Reach at Max Lift and Dump

4.38ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2257

Engine Model

6CT 8.3C

Net Power

153hp

Gross Power

161hp

Power Measured @

2200rpm

Displacement

506.5cu in

Torque Measured @

1400rpm

Max Torque

733.2

Aspiration

turbocharged

Operational

Operating Weight

48675.9lb

Fuel Capacity

84.6gal

Hydraulic System Fluid Capacity

56.8gal

Engine Oil Fluid Capacity

5gal

Cooling System Fluid Capacity

10.6gal

Transmission Fluid Capacity

9gal

Front Axle/Diff Fluid Capacity

18.3gal

Rear Axle/Diff Fluid Capacity

13.5gal

Static Tipping Weight

21358.4lb

Turning Radius

21.8ft in

Operating Voltage

24V

Alternator Supplied Amperage

70amps

Rear Axle Oscillation

25degrees

Tire Size

23.5R25 HXA (L3)

Transmission

Transmission Type

smooth shift powershift

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

23.3mph

Max Speed - Reverse

15.2mph

Hydraulic System

Pump Type

twin variable displacement piston pump

Relief Valve Setting

3625

Pump Flow Capacity

43.1gal/min

Raise Time

5.8sec

Dump Time

1.2sec

Lower Time

4.1sec

Bucket

Breakout Force

39341.6lb

Dump Clearance at Max Raise

13.1ft in

Bucket Width

9.4ft in

Bucket Capacity - heaped

3.7yd3

Bucket Capacity - struck

2.9yd3

Dimensions

Length with Bucket on Ground

31.1ft in

Width Over Tires

8.9ft in

Height to Top of Cab

11.1ft in

Ground Clearance

1.6ft in

Wheelbase

10.9ft in

Hinge Pin - Max Height

17.3ft in

Reach at Max Lift and Dump

4.4ft in
