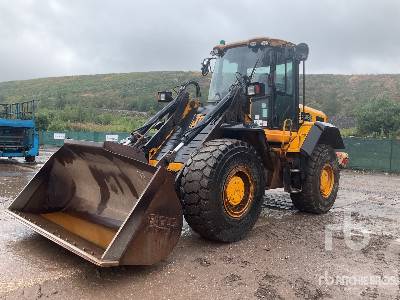

JCB 411ZX Zet Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance At Max Raise

9.11ft in

Breakout Force

13893.2lb

Bucket Capacity - Heaped

1.57yd3

Bucket Capacity - Struck

1.34yd3

Bucket Width

7.39ft in

Dimensions

E

Ground Clearance

1.42ft in

A

Length With Bucket On Ground

18.15ft in

C

Height To Top Of Cab

9.42ft in

D

Wheelbase

7.39ft in

F

Hinge Pin - Max Height

10.72ft in

H

Reach At Max Lift And Dump

2.32ft in


Specifications

Engine

Number Of Cylinders

4

Engine Make

2257

Engine Model

1004-42

Net Power

92hp

Gross Power

86hp

Power Measured @

2000rpm

Max Torque

273.7lb ft

Displacement

258.3cu in

Torque Measured @

1400rpm

Aspiration

turbo

Operational

Operating Weight

16799.3lb

Fuel Capacity

29.1gal

Hydraulic System Fluid Capacity

34.4gal

Engine Oil Fluid Capacity

2.9gal

Cooling System Fluid Capacity

4.8gal

Front Axle/Diff Fluid Capacity

4.3gal

Rear Axle/Diff Fluid Capacity

4.8gal

Static Tipping Weight

11464.1lb

Turning Radius

15ft in

Operating Voltage

12V

Alternator Supplied Amperage

65amps

Rear Axle Oscillation

18degrees

Transmission

Transmission Type

hydrostatic

Number Of Forward Gears

2

Number Of Reverse Gears

2

Max Speed - Forward

12.5mph

Max Speed - Reverse

12.5mph

Hydraulic System

Relief Valve Setting

3553psi

Pump Flow Capacity

23.8gal/min

Raise Time

4.9sec

Dump Time

0.9sec

Lower Time

3.1sec

Pump Type

gear
