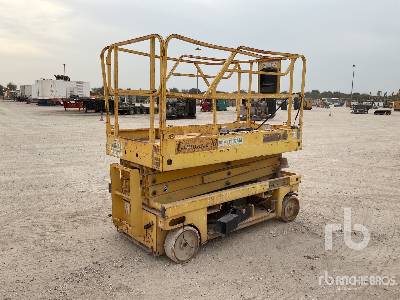

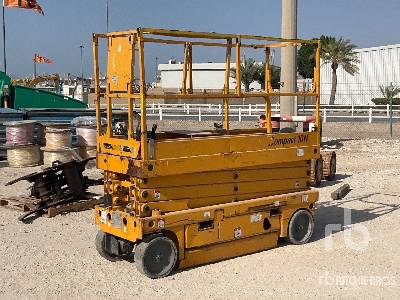

Haulotte Compact 10 Scissor Lift
Units
Dimensions
Dimensions
A
Overall Length
7.58in
D
Wheelbase
6.11ft in
B
Overall Width
3.94ft in
C
Height W/ Rails
7.42ft in
E
Ground Clearance
5.12in
Height W/O Rails
3.75ft in
Turning Radius
8.21ft in
Platform
F
Max Platform Height
26.71ft in
I
Deck Extension
36.23in
Max Working Height
33.27ft in
Max Platform Weight Capacity
992.09lb
Platform Inner Length
90.56in
Platform Inner Width
47.25in
Lower Time
42sec
Lift Time
51sec
Specifications
Engine
System Voltage
24V
Number Of Batteries
4.0000
Battery Amp Hours
250.0000
Charger Amps
30amps
Operational
Operating Weight
5136.8lb
Max Speed
2.2mph
Tire Size
15 x 5 x 2
Tire Fill/Type
solid/non marking
