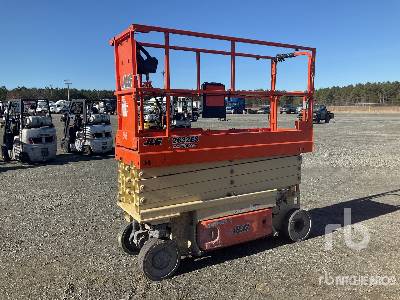

JLG 2630ES Scissor Lift

Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Units

Dimensions

Dimensions

A

Overall Length

7.55 in

B

Overall Width

2.5 ft in

C

Height w/ Rails

7.22 ft in

D

Wheelbase

6.17 ft in

E

Ground Clearance

3.47 in

Platform

F

Max Platform Height

25.5 ft in

I

Deck Extension

35.44 in

J

Height of Rails

3.61 ft in


Specifications

Engine

System Voltage

24 V

Number of Batteries

4

Battery Amp Hours

200

Charger Amps

20 amps

Operational

Operating Weight

4751 lb

Hydraulic System Fluid Capacity

1.3 gal

Max Speed

3 mph

Tire Size

16x5

Tire Fill/Type

Solid, Non-marking

Platform

Max Platform Height

25.5 ft in

Max Platform Weight Capacity

800.3 lb

Platform Inner Length

90.6 in

Platform Inner Width

30 in

Lift Time

40 sec

Lower Time

40 sec

Height of Rails

3.7 ft in

Deck Extension

35.5 in

Dimensions

Wheelbase

6.2 ft in

Overall Length

7.6 in

Overall Width

2.5 ft in

Height w/ Rails

7.3 ft in

Turning Radius

6.8 ft in

Ground Clearance

3.5 in
