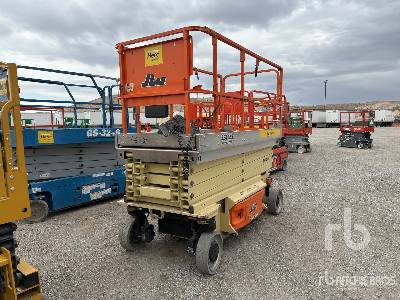

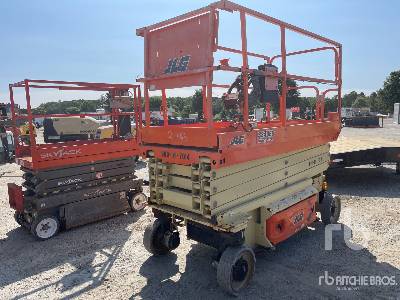

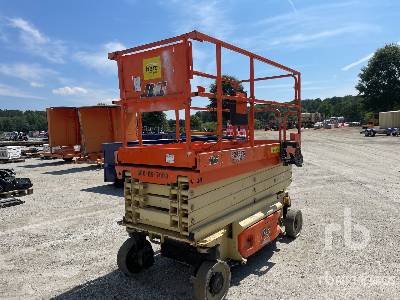

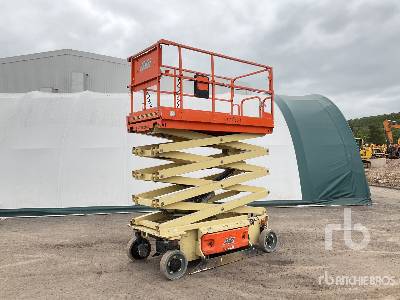

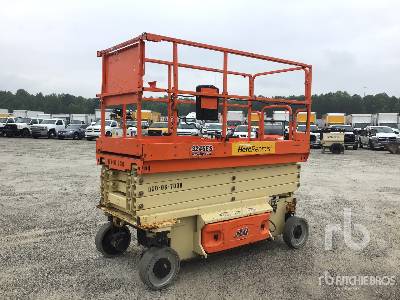

JLG 3246ES Scissor Lift

Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Units

Dimensions

Dimensions

A

Overall Length

8.21 in

B

Overall Width

3.84 ft in

D

Wheelbase

6.86 ft in

E

Ground Clearance

5 in

Platform

F

Max Platform Height

31.76 ft in

I

Deck Extension

35.44 in

J

Height of Rails

3.61 ft in


Specifications

Engine

Maximum Ground Bearing Pressure

87 psi

System Voltage

24 V

Number of Batteries

4

Battery Amp Hours

4 x 6V, 220 amp-hours

Charger Amps

20 amps

Operational

Operating Weight

4779.7 lb

Hydraulic System Fluid Capacity

1.7 gal

Max Speed

2.5 mph

Tire Size

16x5 in

Tire Fill/Type

Solid, Non-marking

Hydraulic Pump Type

Fixed Displacement Gear

Performance

Gradeability

25 %

Drive Speed - Platform Elevated

0.5 mph

Drive Speed - Platform Lowered

2.5 mph

Maximum Drive Height

31.8 ft in

Maximum Lift Height

31.8 ft in

Platform

Max Platform Height

31.8 ft in

Platform Capacity - Extension

250 lb

Max Platform Weight Capacity

1000.9 lb

Platform Inner Length

98.5 in

Platform Inner Width

44.1 in

Platform Railing Height

31.8 ft in

Lift Time

50 sec

Lower Time

50 sec

Height of Rails

3.7 ft in

Deck Extension

35.5 in

Platform Capacity - Unrestricted

700 lb

Platform Capacity - Restricted

1000 lb

Brakes

Brakes Type

Electric, Friction

Dimensions

Wheelbase

6.9 ft in

Platform Dimension A

8.3 ft in

Platform Dimension B

3.8 ft in

Overall Length

8.3 in

Overall Width

3.9 ft in

Height w/o Rails

6.5 ft in

Turning Radius

8 ft in

Ground Clearance

5 in
