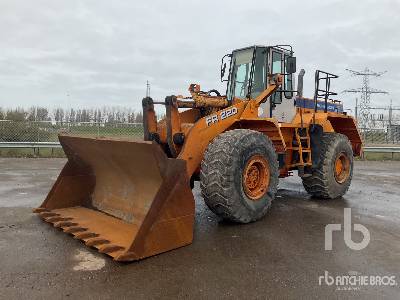

Fiat-Hitachi W230 Wheel Loader

Fiat-Hitachi W230 Wheel Loader Specs front
Fiat-Hitachi W230 Wheel Loader Specs front
Fiat-Hitachi W230 Wheel Loader Specs side
Fiat-Hitachi W230 Wheel Loader Specs side
Fiat-Hitachi W230 Wheel Loader Specs back
Fiat-Hitachi W230 Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

8.95 ft in

Dimensions

A

Length with Bucket on Ground

28.02 ft in

B

Width Over Tires

9.54 ft in

C

Height to Top of Cab

11.26 ft in

D

Wheelbase

10.83 ft in

E

Ground Clearance

1.37 ft in

F

Hinge Pin - Max Height

13.65 ft in

H

Reach at Max Lift and Dump

3.83 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2347

Engine Model

6C7 8.3

Net Power

225 hp

Gross Power

235 hp

Power Measured @

2500 rpm

Displacement

506.5 cu in

Torque Measured @

1500 rpm

Max Torque

715.5

Aspiration

turbo + aftercooled

Operational

Operating Weight

43894.1 lb

Fuel Capacity

79.3 gal

Hydraulic System Fluid Capacity

42.3 gal

Engine Oil Fluid Capacity

6.4 gal

Cooling System Fluid Capacity

15.9 gal

Transmission Fluid Capacity

10.6 gal

Front Axle/Diff Fluid Capacity

10.1 gal

Rear Axle/Diff Fluid Capacity

10.1 gal

Static Tipping Weight

35714.9 lb

Turning Radius

2.2 ft in

Operating Voltage

24 V

Alternator Supplied Amperage

50 amps

Rear Axle Oscillation

22 degrees

Tire Size

23.5 - 25 GP-2B

Transmission

Transmission Type

Power-Shift Countershaft

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

23.2 mph

Max Speed - Reverse

24.3 mph

Hydraulic System

Pump Type

gear type

Relief Valve Setting

441.7

Pump Flow Capacity

91.2 gal/min

Raise Time

6.2 sec

Dump Time

1.4 sec

Lower Time

3.5 sec

Bucket

Breakout Force

4114003.4 lb

Dump Clearance at Max Raise

9 ft in

Bucket Width

10.1 ft in

Bucket Capacity - heaped

5.3 yd3

Bucket Capacity - struck

4.5 yd3

Dimensions

Length with Bucket on Ground

28.1 ft in

Width Over Tires

9.6 ft in

Height to Top of Cab

11.3 ft in

Ground Clearance

1.4 ft in

Wheelbase

10.9 ft in

Hinge Pin - Max Height

13.7 ft in

Reach at Max Lift and Dump

3.9 ft in
