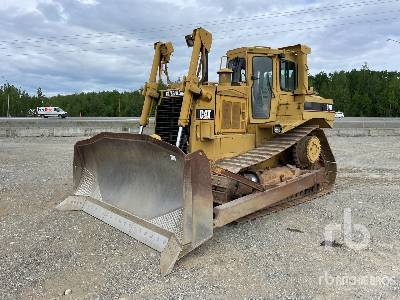

Caterpillar D7H Series II Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Units

Dimensions

Dimensions

A

Length w/ Blade

18.25 ft in

B

Width Over Tracks

8.34 ft in

C

Height to Top of Cab

11.23 ft in

D

Length of Track on Ground

9.52 ft in

E

Ground Clearance

1.34 ft in

F

Length w/o Blade

15.16 ft in

Undercarriage

G

Track Gauge

6.5 ft in

H

Standard Shoe Size

22.05 in


Specifications

Engine

Engine Make

2236

Engine Model

3306

Gross Power

215 hp

Displacement

640.8 cu in

Operational

Operating Weight

53340.9 lb

Fuel Capacity

129 gal

Hydraulic Fluid Capacity

13.8 gal

Transmission

Transmission Type

powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

7.4 mph

Max Speed - Reverse

8.9 mph

Undercarriage

Ground Pressure

10.6 psi

Ground Contact Area

5022.1 in2

Standard Shoe Size

22.1 in

Number of Track Rollers per Side

7

Track Gauge

6.5 ft in

Hydraulic System

Relief Valve Pressure

3300 psi

Pump Flow Capacity

46.3 gal/min

Standard Blade

Width

12.8 ft in

Height

53.6 in

Capacity

6.8 yd3

Cutting Depth

20.8 in

Dimensions

Length w/o Blade

15.2 ft in

Length w/ Blade

18.3 ft in

Width Over Tracks

8.4 ft in

Height to Top of Cab

11.3 ft in

Length of Track on Ground

9.6 ft in

Ground Clearance

1.4 ft in
