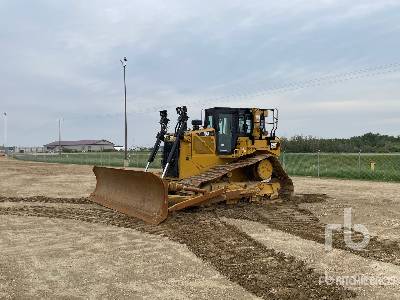

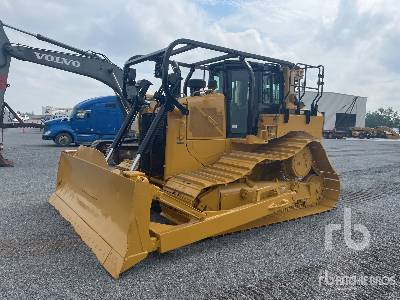

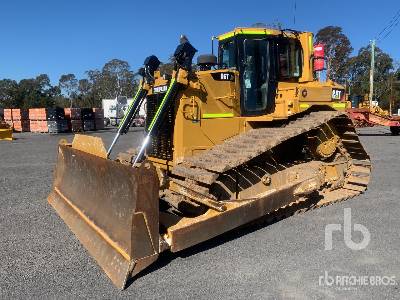

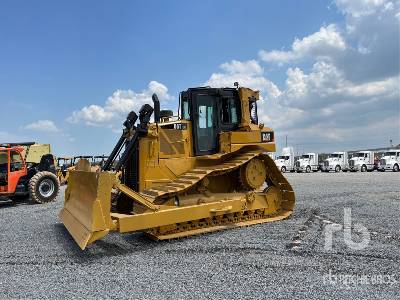

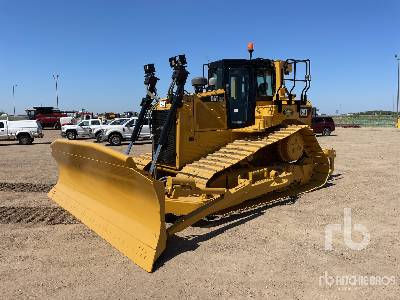

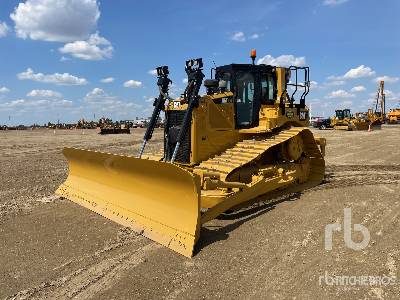

Caterpillar D6T LGP S Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
MODEL.UNITS

Dimensions

Dimensions

B

Width Over Tracks

10.5ft in

C

Height To Top Of Cab

10.67ft in

D

Length Of Track On Ground

10.75ft in

E

Ground Clearance

1.42ft in

F

Length W/O Blade

13.92ft in

Undercarriage

H

Standard Shoe Size

36in

Ground Pressure

5.15psi

Track Pitch

8in

Ground Contact Area

9288in2

Number Of Track Rollers Per Side

8

Number Of Shoes Per Side

45


Specifications

Engine

Engine Make

2236

Engine Model

C9 ACERT

Gross Power

228hp

Net Power

200hp

Displacement

537cu in

Operational

Operating Weight

48024lb

Fuel Capacity

112gal

Cooling System Fluid Capacity

18.5gal

Engine Oil Capacity

7.4gal

Hydraulic Fluid Capacity

13.6gal

Powertrain Fluid Capacity

38.5gal

Final Drives Fluid Capacity

3.6gal

Operating Voltage

24V

Alternator Supplied Amperage

95amps

Transmission

Transmission Type

Powershift

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

7.2mph

Max Speed - Reverse

9.1mph

Hydraulic System

Relief Valve Pressure

2799psi

Pump Flow Capacity

49.9gal/min

Standard Blade

Width

13.4ft in

Height

44in

Capacity

4.9yd3

Cutting Depth

26in
