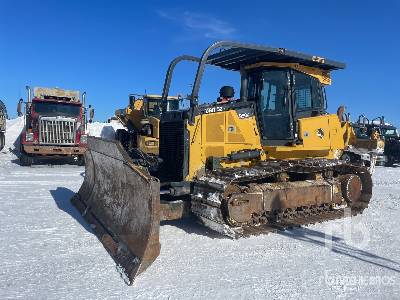

John Deere 850K Crawler Tractor
Units
Dimensions
Dimensions
E
Ground Clearance
1.35ft in
G
Track Gauge
6.17ft in
Blade Width
10.67ft in
Length - Pat Blade Straight
17.67ft in
Max Height
10.54ft in
Steering - Differential
No
Blade-Tilt
2.48ft in
Track Length On Ground
6.17ft in
Blade - Dig Depth
23.59in
Specifications
Engine
Engine Make
2240
Engine Model
PowerTech PSS 6068
Net Power
205hp
Power Measured @
1800rpm
Displacement
6.8cu in
Aspiration
Yes
Driveline
Engine Model
PowerTech PSS 6068
Displacement
415cu in
Engine Manufacturer
John Deere
Rated Speed
1800rpm
Engine Output - Net
203.9hp
Transmission Type
Hydrostatic
Number Of Shoes
40
Final Drive
Double Reduction - Planetary
Ground Contact Area
13291.4in
Shoe - Pitch
3.2in
Track Rollers
7
Speeds Mode 1 - Forward
1
Speeds Mode 1 - Reverse
1
Oscillation
Yes
Shoe - Type
Single Grouser - Moderate Service
Capacities
Fuel Tank - Diesel
97.3gal
Hydraulic Tank
29.6gal
Blade - Capacity
5.6ft in
Operational
Operating Weight
19304lb
Fuel Capacity
368gal
Performance
Ground Bearing Pressure
8.2psi
Implement Pump - Flow
43.1gal
Implement Pump - Pressure
249.93 (3625)
Implement Pump - Type
Variable Displacement Piston
Transmission
Transmission Type
Hydrostatic
Number Of Forward Gears
1
Number Of Reverse Gears
1
Max Speed - Forward
9.7mph
Max Speed - Reverse
9.7mph
Weights
Operating Weight
42558.1lb
