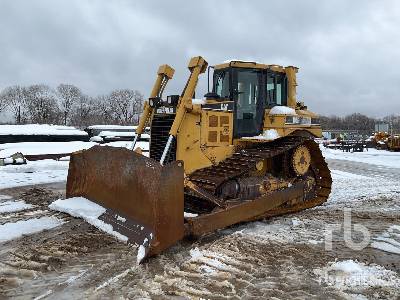

Caterpillar D6R Series II Crawler Tractor

Caterpillar D6R Series II Crawler Tractor Specs front
Caterpillar D6R Series II Crawler Tractor Specs front
Caterpillar D6R Series II Crawler Tractor Specs side
Caterpillar D6R Series II Crawler Tractor Specs side
Caterpillar D6R Series II Crawler Tractor Specs back
Caterpillar D6R Series II Crawler Tractor Specs back
Units

Dimensions

Dimensions

A

Length w/ Blade

16.8 ft in

B

Width Over Tracks

8.01 ft in

C

Height to Top of Cab

6.96 ft in

D

Length of Track on Ground

8.6 ft in

E

Ground Clearance

1.26 ft in

F

Length w/o Blade

13.39 ft in

Undercarriage

G

Track Gauge

6.17 ft in

H

Standard Shoe Size

22.05 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2236

Engine Model

3306

Gross Power

165 hp

Power Measured @

1900 rpm

Displacement

640.8 cu in

Operational

Operating Weight

45415.3 lb

Fuel Capacity

101.2 gal

Transmission

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

7.7 mph

Max Speed - Reverse

10 mph

Undercarriage

Ground Pressure

8.9 psi

Ground Contact Area

4518 in2

Standard Shoe Size

22.1 in

Number of Track Rollers per Side

6

Track Gauge

6.2 ft in

Standard Blade

Width

11.1 ft in

Height

49.5 in

Capacity

5.1 yd3

Cutting Depth

18.7 in

Dimensions

Length w/o Blade

13.4 ft in

Length w/ Blade

16.8 ft in

Width Over Tracks

8.1 ft in

Height to Top of Cab

7 ft in

Length of Track on Ground

8.6 ft in

Ground Clearance

1.3 ft in
