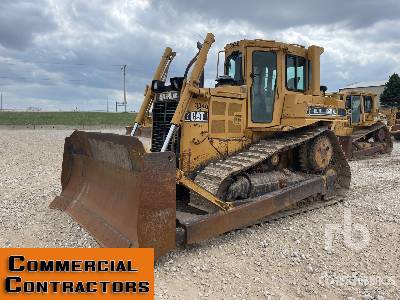

Caterpillar D6H LGP Series II Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
17ft in
B
Width Over Tracks
10.31ft in
C
Height To Top Of Cab
10.37ft in
D
Length Of Track On Ground
10.73ft in
E
Ground Clearance
1.26ft in
F
Length W/O Blade
14.74ft in
Undercarriage
G
Track Gauge
7.32ft in
H
Standard Shoe Size
36.03in
Ground Contact Area
9253.52in2
Number Of Track Rollers Per Side
8
Ground Pressure
4.72psi
Specifications
Engine
Engine Make
2236
Engine Model
3306
Gross Power
170hp
Displacement
640.8cu in
Operational
Operating Weight
43682.4lb
Fuel Capacity
89.1gal
Transmission
Transmission Type
powershift
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
7.1mph
Max Speed - Reverse
9mph
Standard Blade
Width
13.1ft in
Height
43.4in
Capacity
4.9yd3
Cutting Depth
25.8in
