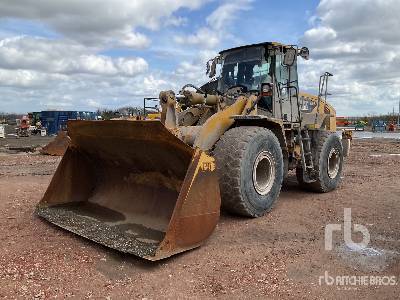

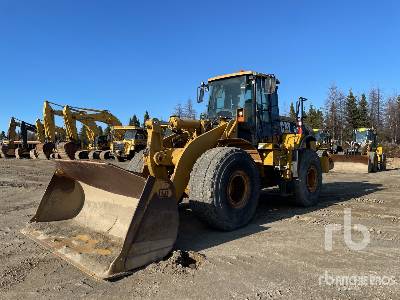

Caterpillar 966H Wheel Loader

Caterpillar 966H Wheel Loader Specs front
Caterpillar 966H Wheel Loader Specs front
Caterpillar 966H Wheel Loader Specs side
Caterpillar 966H Wheel Loader Specs side
Caterpillar 966H Wheel Loader Specs back
Caterpillar 966H Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

10.17 ft in

Dimensions

A

Length with Bucket on Ground

29.08 ft in

B

Width Over Tires

9.67 ft in

C

Height to Top of Cab

11.83 ft in

D

Wheelbase

11.32 ft in

E

Ground Clearance

1.63 ft in

F

Hinge Pin - Max Height

13.86 ft in

H

Reach at Max Lift and Dump

4.25 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2236

Engine Model

C11 ACERT

Net Power

262 hp

Gross Power

286 hp

Power Measured @

1800 rpm

Displacement

677 cu in

Torque Measured @

1400 rpm

Max Torque

896

Torque Rise

38 %

Aspiration

Turbocharged

Operational

Operating Weight

52254 lb

Fuel Capacity

100.4 gal

Hydraulic System Fluid Capacity

29 gal

Engine Oil Fluid Capacity

9.3 gal

Cooling System Fluid Capacity

10.3 gal

Transmission Fluid Capacity

11.7 gal

Front Axle/Diff Fluid Capacity

16.9 gal

Rear Axle/Diff Fluid Capacity

16.9 gal

Static Tipping Weight

38354 lb

Turning Radius

24.2 ft in

Operating Voltage

24 V

Alternator Supplied Amperage

80 amps

Rear Axle Oscillation

26 degrees

Tire Size

26.5-25

Transmission

Transmission Type

Powershift

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

23.2 mph

Max Speed - Reverse

23.2 mph

Hydraulic System

Pump Type

Piston

Relief Valve Setting

1000

Pump Flow Capacity

80.6 gal/min

Raise Time

5.9 sec

Dump Time

1.6 sec

Lower Time

2.4 sec

Bucket

Breakout Force

42300 lb

Dump Clearance at Max Raise

10.2 ft in

Bucket Width

10.6 ft in

Bucket Capacity - heaped

5.5 yd3

Bucket Capacity - struck

4.8 yd3

Dimensions

Length with Bucket on Ground

29.1 ft in

Width Over Tires

9.7 ft in

Height to Top of Cab

11.9 ft in

Ground Clearance

1.7 ft in

Wheelbase

11.4 ft in

Hinge Pin - Max Height

13.9 ft in

Reach at Max Lift and Dump

4.3 ft in
