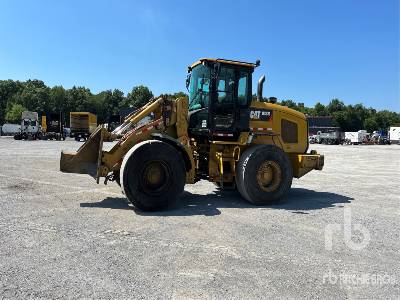

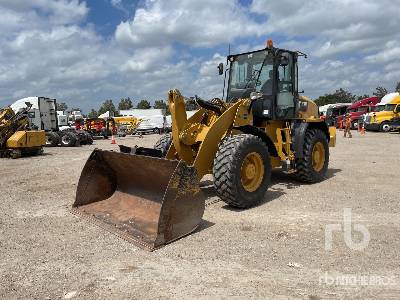

Caterpillar 962M (TIER 4/STAGE IV) (2016) Wheel Loader
Dimensions
Dimensions - High Lift
Ground Clearance
1.17ft in
Wheel Base
11ft in
Centerline Of Rear Axle To Edge Of Counterweight
7.08ft in
Centerline Of Rear Axle To Hitch
5.5ft in
Height - Top Of Exhaust Pipe
11.17ft in
Height - Top Of Hood
8.83ft in
Height - Top Of Rops
11.33ft in
Hinge Pin Height At Carry Height
2.58ft in
Hinge Pin Height At Maximum Lift
14.83ft in
Lift Arm Clearance At Maximum Lift
11.83ft in
Maximum Width - Over Tires - Loaded
9.25ft in
Overall Length - Without Bucket
23.75ft in
Rack Back - Carry Height
49 degrees
Rack Back - Maximum Lift
59 degrees
Rack Back At Ground
37 degrees
Tread Width
7ft in
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Dimensions - Standard Lift
Ground Clearance
1.17ft in
Rack Back - Maximum Lift
59 degrees
Centerline Of Rear Axle To Edge Of Counterweight
7.08ft in
Lift Arm Clearance At Maximum Lift
11.33ft in
Centerline Of Rear Axle To Hitch
5.5ft in
Maximum Width - Over Tires - Loaded
9.25ft in
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Tread Width
7ft in
Height - Top Of Exhaust Pipe
11.17ft in
Height - Top Of Hood
8.83ft in
Overall Length - Without Bucket
23.75ft in
Height - Top Of Rops
11.33ft in
Rack Back At Ground
37 degrees
Hinge Pin Height At Carry Height
2.17ft in
Rack Back - Carry Height
49 degrees
Wheel Base
11ft in
Hinge Pin Height At Maximum Lift
13.92ft in
Specifications
Engine
Displacement
428cu in
Net Power - Iso 9249
250hp
Engine Model
Cat C7.1 ACERT
Maximum Gross Power - 2,100 Rpm - Sae J1995
271hp
Maximum Net Power - 2,100 Rpm - Sae J1349
250hp
Maximum Gross Power - 2,100 Rpm - Iso 14396 - Metric
273hp
Maximum Net Torque - 1,350 Rpm
865lb ft
Peak Gross Torque - 1,350 Rpm - Sae J1995
921lb ft
Maximum Net Power - 2,100 Rpm - Iso 9249 - Metric
253hp
Peak Gross Torque - 1,350 Rpm - Iso 14396
918lb ft
Maximum Gross Power - 2,100 Rpm - Iso 14396
269hp
Maximum Net Power - 2,100 Rpm - Iso 9249
250hp
Operational
Operating Weight
44591lb
Transmission
Forward - 1
4.3mph
Forward - 2
7.5mph
Forward - 3
12mph
Forward - 4
16mph
Forward - 5
24.5mph
Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.
Reverse - 1
4.3mph
Reverse - 2
7.5mph
Reverse - 3
16mph
Weights
Operating Weight
44591lb
Note
Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link, manual diff lock/open axles (front/rear), power train guard, secondary steering, sound suppression and a 3.3 m3 (4.3 yd3) general purpose bucket with BOCE.
Buckets
Bucket Capacities
2.5-9.2 m? (3.3-12.0 yd?)
Hydraulic System
Hydraulic Cycle Time - Total
8.9 s
Implement System - Maximum Operating Pressure
4250 psi
Implement System - Maximum Pump Output At 2,150 Rpm
76 gal/min
Implement Pump Type
Variable Axial Piston
Operating Specifications
Note (1)
For a machine configuration as defined under ?Weight.?
Note (2)
Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Breakout Force
42489lb
Static Tipping Load - Full 40 Degrees Turn - With Tire Deflection
25814lb
Static Tipping Load - Full 40 Degrees Turn - No Tire Deflection
27494lb
Service Refill Capacities
Cooling System
15.6gal
Fuel Tank
72.6gal
Crankcase
5.8gal
Def Tank
4.2gal
Hydraulic Tank
33gal
Transmission
11.4gal
Differential - Final Drives - Front
11.4gal
Differential - Final Drives - Rear
11.4gal
Sound
Note (1)
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note (2)
**European Union Directive ?2000/14/EC? as amended by ?2005/88/EC.?
With Cooling Fan Speed At Maximum Value - Operator Sound Pressure Level (Iso 6396:2008)
70 dB(A)
With Cooling Fan Speed At Maximum Value - Exterior Sound Power Level (Iso 6395:2008)
108 dB(A)
With Cooling Fan Speed At Maximum Value - Exterior Sound Pressure Level (Sae J88:2013)
75 dB(A)*
With Cooling Fan Speed At 70% Of Maximum Value - Operator Sound Pressure Level (Iso 6396:2008)
69 dB(A)
With Cooling Fan Speed At 70% Of Maximum Value - Exterior Sound Power Level (Iso 6395:2008)
106 LWA**
Bucket Capacities
Bucket Range
2.5-9.2 m? (3.3-12.0 yd?)
