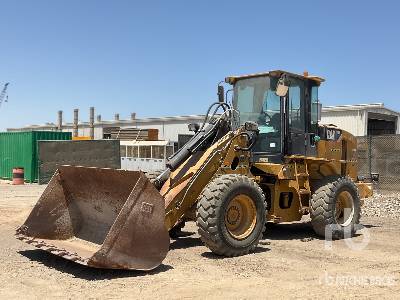

Caterpillar 930H Wheel Loader

Caterpillar 930H Wheel Loader Specs front
Caterpillar 930H Wheel Loader Specs front
Caterpillar 930H Wheel Loader Specs side
Caterpillar 930H Wheel Loader Specs side
Caterpillar 930H Wheel Loader Specs back
Caterpillar 930H Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.58 ft in

Dimensions

A

Length with Bucket on Ground

24.75 ft in

B

Width Over Tires

8.5 ft in

C

Height to Top of Cab

10.75 ft in

D

Wheelbase

9.51 ft in

E

Ground Clearance

1.35 ft in

F

Hinge Pin - Max Height

13.33 ft in

H

Reach at Max Lift and Dump

3.52 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2236

Engine Model

C6.6

Net Power

149 hp

Power Measured @

2300 rpm

Displacement

403 cu in

Max Torque

536

Operational

Operating Weight

28725 lb

Fuel Capacity

59.4 gal

Hydraulic System Fluid Capacity

39 gal

Engine Oil Fluid Capacity

4 gal

Cooling System Fluid Capacity

10.6 gal

Transmission Fluid Capacity

9.1 gal

Front Axle/Diff Fluid Capacity

6.9 gal

Rear Axle/Diff Fluid Capacity

6.6 gal

Static Tipping Weight

18321 lb

Turning Radius

19.5 ft in

Tire Size

20.5 R25 L3 XHA

Transmission

Transmission Type

Standard Transmission max travel speed

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

23.8 mph

Max Speed - Reverse

15 mph

Hydraulic System

Pump Type

Impement Pump

Relief Valve Setting

3755

Pump Flow Capacity

58 gal/min

Raise Time

5 sec

Dump Time

1.7 sec

Lower Time

2.8 sec

Bucket

Breakout Force

30263 lb

Dump Clearance at Max Raise

9.6 ft in

Bucket Width

8.4 ft in

Bucket Capacity - heaped

2.8 yd3

Dimensions

Length with Bucket on Ground

24.8 ft in

Width Over Tires

8.5 ft in

Height to Top of Cab

10.8 ft in

Ground Clearance

1.4 ft in

Wheelbase

9.6 ft in

Hinge Pin - Max Height

13.4 ft in

Reach at Max Lift and Dump

3.6 ft in
