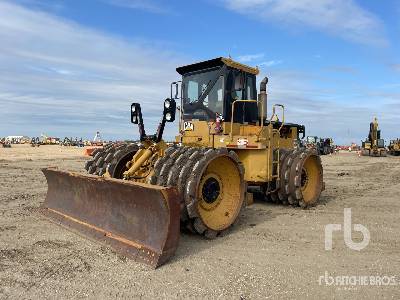

Caterpillar 825B Compactor

Caterpillar 825B Compactor Specs front
Caterpillar 825B Compactor Specs front
Caterpillar 825B Compactor Specs side
Caterpillar 825B Compactor Specs side
Caterpillar 825B Compactor Specs back
Caterpillar 825B Compactor Specs back
Units

Dimensions

Dimensions

A

Length With Blade on Ground

23.3 ft in

B

Width Over Wheels

11.98 ft in

C

Height to Top of Cab

12.08 ft in

D

Wheelbase

11.65 ft in

E

Ground Clearance

1.55 ft in


Specifications

Engine

Engine Model

D343

Gross Power

300 hp

Displacement

891 cu in

Operational

Operating Weight

67814.2 lb

Fuel Capacity

229.9 gal

Transmission

Max Speed

8.1 mph

Wheels

Front Wheels Drum Width

44.5 in

Front Wheels Drum Diameter

66.2 in

Blade

Height

40.6 in

Width

13.7 ft in

Dimensions

Length with Blade on Ground

23.3 ft in

Width Over Wheels

12 ft in

Height to Top of Cab

12.1 ft in

Wheelbase

11.7 ft in

Ground Clearance

1.6 ft in
