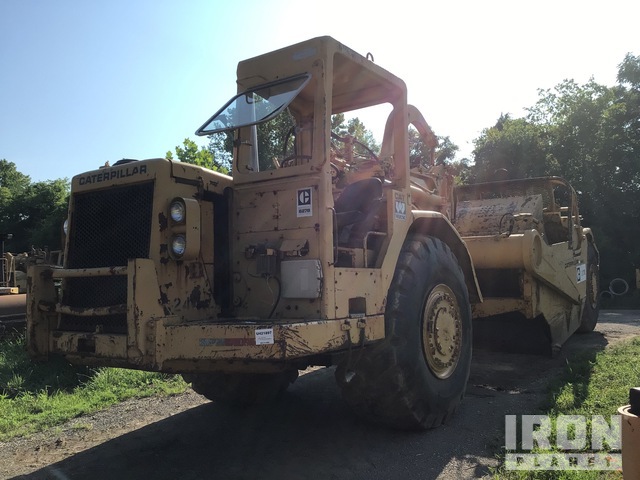

Caterpillar 627B Motor Scraper

Caterpillar 627B Motor Scraper Specs front
Caterpillar 627B Motor Scraper Specs front
Caterpillar 627B Motor Scraper Specs side
Caterpillar 627B Motor Scraper Specs side
Caterpillar 627B Motor Scraper Specs back
Caterpillar 627B Motor Scraper Specs back
Units

Dimensions

Dimensions

A

Overall Length

43.75 ft in

B

Overall Width

11.33 ft in

C

Overall Height

11.9 ft in

D

Wheelbase

25.33 ft in

F

Height to Top of Cab

- -


Specifications

Tractor Engine

Model

3306

Net Power

225 hp

Power Measured @

2100 rpm

Displacement

638 cu in

Scraper Engine

Model

3306

Net Power

225 hp

Power Measured @

2100 rpm

Displacement

638 cu in

Operational

Fuel Capacity

265 gal

Tire Size

29.5x29, 28PR

Transmission

Max Speed Forward

34 mph

Weights

Total Operating - empty

76200 lb

Bowl

Heaped Capacity

20 yd3

Struck Capacity

14 yd3

Max Depth of Cut

13.4 in

Width of Cut

10 ft in

Dimensions

Overall Length

43.8 ft in

Overall Width

11.4 ft in

Overall Height

11.9 ft in

Wheelbase

25.4 ft in
