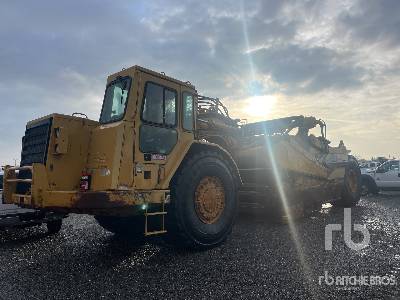

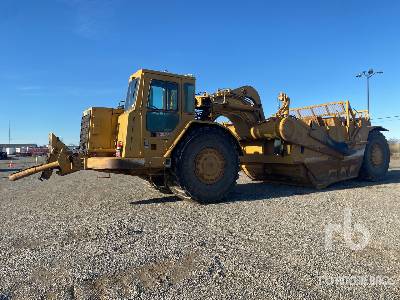

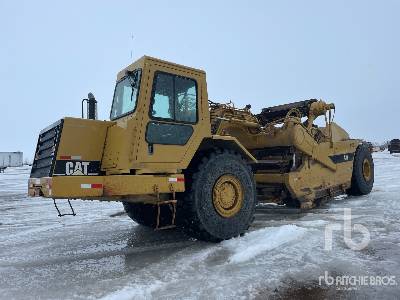

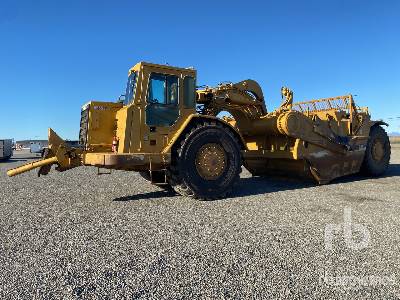

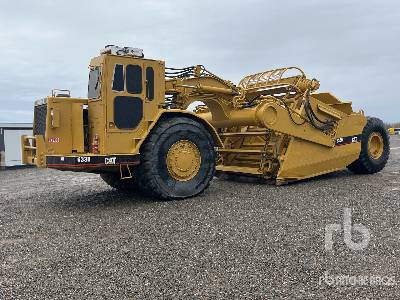

Caterpillar 627E Motor Scraper

Caterpillar 627E Motor Scraper Specs front
Caterpillar 627E Motor Scraper Specs front
Caterpillar 627E Motor Scraper Specs side
Caterpillar 627E Motor Scraper Specs side
Caterpillar 627E Motor Scraper Specs back
Caterpillar 627E Motor Scraper Specs back
Units

Dimensions

Dimensions

A

Overall Length

42.29 ft in

B

Overall Width

11.38 ft in

C

Overall Height

12.16 ft in

D

Wheelbase

25.21 ft in

E

Tractor Ground Clearance

1.72 ft in

F

Height to Top of Cab

11.05 ft in


Specifications

Tractor Engine

Make

Caterpillar

Model

3406

Gross Power

238 hp

Net Power

225 hp

Power Measured @

2100 rpm

Displacement

640.8 cu in

Aspiration

turbocharged

Scraper Engine

Make

Caterpillar

Model

3306

Gross Power

246 hp

Net Power

225 hp

Power Measured @

2200 rpm

Displacement

640.8 cu in

Aspiration

turbocharged

Operational

Fuel Capacity

208.7 gal

Cooling System Fluid Capacity

36.8 gal

Engine Oil Fluid Capacity

14.3 gal

Transmission Fluid Capacity

41 gal

Differential Fluid Capacity

37.8 gal

Hydraulic System Fluid Capacity

51.6 gal

Wheel Coolant Fluid Capacity - each

23.8 gal

Operating Voltage

24 V

Tire Size

33.25-29 26PR (E-3)

Transmission

Number of Forward Gears

8

Number of Reverse Gears

1

Max Speed Forward

35.8 mph

Max Speed Reverse

6.5 mph

Weights

Total Operating - empty

76436.5 lb

Front Axle - empty

44753.9 %

Rear Axle - empty

31682.7 %

Total Operating - Loaded

124437.8 lb

Front Axel - loaded

60208.3 lb

Rear Axle - loaded

64229.5 %

Bowl

Rated Payload

48060.8 lb

Heaped Capacity

20.1 yd3

Struck Capacity

14 yd3

Max Depth of Cut

13.2 in

Width of Cut

10 ft in

Dimensions

Overall Length

42.3 ft in

Overall Width

11.4 ft in

Height to Top of Cab

11.1 ft in

Overall Height

12.2 ft in

Wheelbase

25.3 ft in

Tractor Ground Clearance

1.8 ft in
