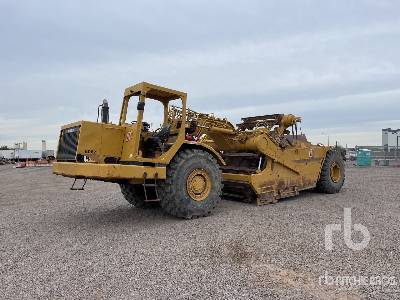

Caterpillar 615C Series II Elevating Motor Scraper

Elevating Motor Scraper
Elevating Motor Scraper
Elevating Motor Scraper
Elevating Motor Scraper
Elevating Motor Scraper
Elevating Motor Scraper
Units

Dimensions

Dimensions

A

Overall Length

38.08ft in

B

Overall Width

10ft in

C

Overall Height

11.78ft in

D

Wheelbase

22.9ft in

E

Tractor Ground Clearance

1.63ft in

Height To Top Of Suspended Cab

10.58ft in


Specifications

Tractor Engine

Make

Caterpillar

Model

3306

Gross Power

279hp

Net Power

265hp

Displacement

638cu in

Aspiration

turbocharged, jacket-water aftercooled

Operational

Fuel Capacity

105gal

Cooling System Fluid Capacity

17gal

Engine Oil Capacity

6gal

Transmission Fluid Capacity

9.5gal

Differential Fluid Capacity

16gal

Hydraulic System Fluid Capacity

42gal

Tire Size

29.5-R25

Transmission

Transmission Type

planetary power-shift, manual transmission

Number Of Forward Gears

6

Number Of Reverse Gears

1

Max Speed Forward

27.6mph

Max Speed Reverse

2.2mph

Weights

Total Operating - Empty

56450lb

Front Axle - Empty

37250%

Rear Axle - Empty

19200%

Total Operating - Loaded

97250lb

Front Axel - Loaded

50010lb

Rear Axle - Loaded

47240%

Bowl

Rated Payload

40800lb

Heaped Capacity

17yd3

Struck Capacity

14yd3

Max Depth Of Cut

15.7in

Width Of Cut

9.5ft in

Elevator

Width Of Flight Face

6.9in

Length Of Flights

6.5ft in

Number Of Flights

18

Max Working Speed

245ft/min
