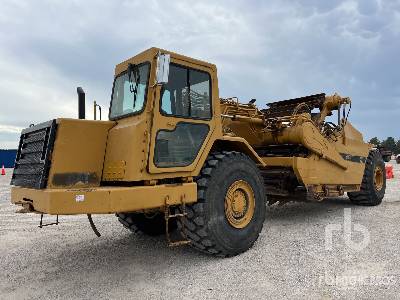

Caterpillar 615C Elevating Motor Scraper
Units
Dimensions
Dimensions
A
Overall Length
38.06ft in
B
Overall Width
10ft in
C
Overall Height
11.78ft in
D
Wheelbase
22.95ft in
Specifications
Tractor Engine
Make
Caterpillar
Model
3306
Gross Power
265hp
Displacement
640.8cu in
Operational
Fuel Capacity
105.5gal
Tire Size
26.5-25 26PR (E-2)
Transmission
Number Of Forward Gears
6
Max Speed Forward
29.3mph
Weights
Total Operating - Empty
50715.2lb
Front Axle - Empty
40064.7%
Rear Axle - Empty
10650.6%
Total Operating - Loaded
89119.7lb
Front Axel - Loaded
47234.1lb
Rear Axle - Loaded
41885.7%
Bowl
Rated Payload
38404.6lb
Heaped Capacity
16yd3
Max Depth Of Cut
16.3in
Width Of Cut
9.5ft in
Elevator
Number Of Flights
18
