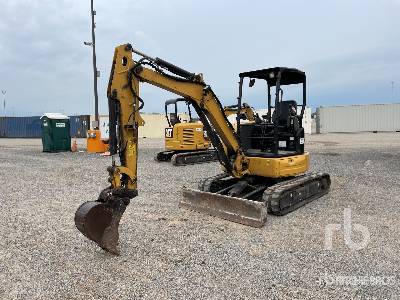

Caterpillar 301.5 Mini Excavator

Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Mini Excavator
Units

Dimensions

Boom/Stick Option (Hex) 1

I

Max Cutting Height

10.9ft in

J

Max Loading Height

7.75ft in

K

Max Reach Along Ground

8.86ft in

L

Max Vertical Wall Digging Depth

5.32ft in

M

Max Digging Depth

6.99ft in

Boom/Stick Option (Hex) 1

boom w/ stick 890mm

Dimensions

B

Width To Outside Of Tracks

3.22ft in

D

Length Of Track On Ground

3.35ft in

E

Ground Clearance

0.73ft in

G

Height To Top Of Cab

7.19ft in

H

Tail Swing Radius

3.52ft in

F

Track Gauge

2.5ft in

Maximum Dump Height - Standard Stick

7.75ft in

Maximum Horizontal Reach - Standard Stick

12.17ft in

Maximum Reach - Ground Level - Standard Stick

11.83ft in

Maximum Vertical Dig Depth - Standard Stick

5.33ft in

Removal Counterweight Clearance

1.51ft in

Shipping Length

12.08ft in

Stick Length - Standard Stick

2.92ft in

Swing Radius - Rear

3.5ft in

Center Ground Clearance

0.75ft in

Height - Over Canopy

7.17ft in

Height - Over Cab

7.17ft in

Maximum Cutting Height - Standard Stick

10.92ft in

Maximum Digging Depth - Standard Stick

7ft in

Track Shoe Width

9ft in

Width - Over Track

3.25ft in

Width - Upper Structure

3.25ft in

Undercarriage

N

Shoe Size

9.06in

F

Track Gauge

2.47ft in

Max Travel Speed

2.74mph

Drawbar Pull

3060lb


Specifications

Electrical System

Electrical System Type

Twelve-volt system

Swing System

Swing System Type

Hydraulic Motor Driven

Machine Swing Speed

9.7rpm

Boom Swing - Left - Without Stop

90degrees

Boom Swing - Left - With Stop

54degrees

Boom Swing - Right

50degrees

Engine

Engine Model

3003

Gross Power

18.4hp

Displacement

58cu in

Engine Model

3003

Operational

Operating Weight

3688.4lb

Fuel Capacity

5.9gal

Hydraulic System Fluid Capacity

9.8gal

Hydraulic System Relief Valve Pressure

2700psi

Hydraulic Pump Flow Capacity

4.5gal/min

Weights

Operating Weight

3434lb

Operating Weight - With Cab

3687lb

Blade

Height

10in

Width

3.3ft in

Lift Height

8in

Dig Depth

9in

Hydraulic System

Operating Pressure - Swing

2528 psi

Pump - Gear (Single)

4.5 gal/min

Pump - Gear (Tandem)

4.2 gal/min

Operating Pressure - Equipment

2734 psi

Operating Pressure - Travel

2734 psi

Digging Force - Stick - Standard

1984lb

Digging Force - Bucket

2843lb

Auxiliary Circuit - Primary (245 Bar/3,553 Psi)

8.4 gal/min

Service Refill Capacities

Fuel Tank

5.8gal

Hydraulic Tank

5.3gal

Hydraulic System

9.8gal

Engine Oil

0.9gal

Cooling System Tag

1.2gal

Engine Dimensions

Bore

3in

Stroke

3in

Displacement

58.2cu in

Msc Comments

Msc Spec Date

1/1/2000

Travel System

Maximum Traction Force - High Speed

1440lb

Maximum Traction Force - Low Speed

3060lb

Gradeability - Maximum - High

30degrees

Travel Speed - High

2.7mph

Travel Speed - Low

1.4mph
